| Component |

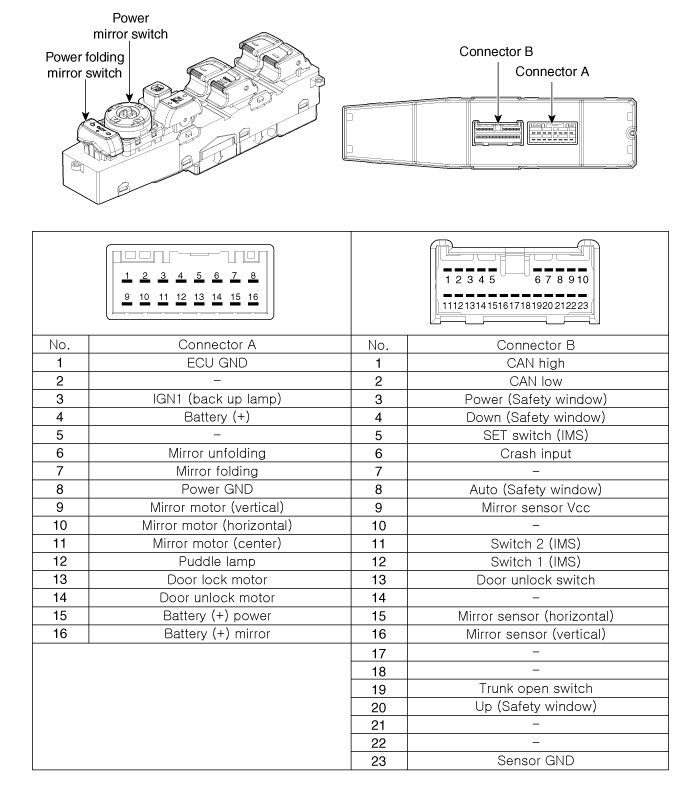

Component Location 1. Power door mirror2. Power door mirror switch3. Power folding mirror switch
Inspection 1. The DDM inputs can be checked using the GDS. 2. To check the input value of door lock switch, select option "IPM". 3. Select option "DDM (Driver Door Module)".
Circuit Diagram SVM System Input/Output 1. Camera input ItemSpecificationLens angle of view190 degreesAngle of viewHorizontal186 degreesVertical135 degreesFunctionProvides the original image of the wide angle image (no additional function)Application locationSame camera applied to the front, rear, left and right 2.
Inspection 1. Ignition "OFF" 2. Disconnect the connector of temperature control actuator. 3. Verify that the temperature control actuator operates to the hot position when connecting 12V to the terminal 3 and grounding terminal 7. Verify that the temperature control actuator operates to the cool position when connecting in the rev
