Kia Cadenza: ESC(Electronic Stability Control) System / Rear Wheel Speed Sensor Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Brake System / ESC(Electronic Stability Control) System / Rear Wheel Speed Sensor Components and Components Location

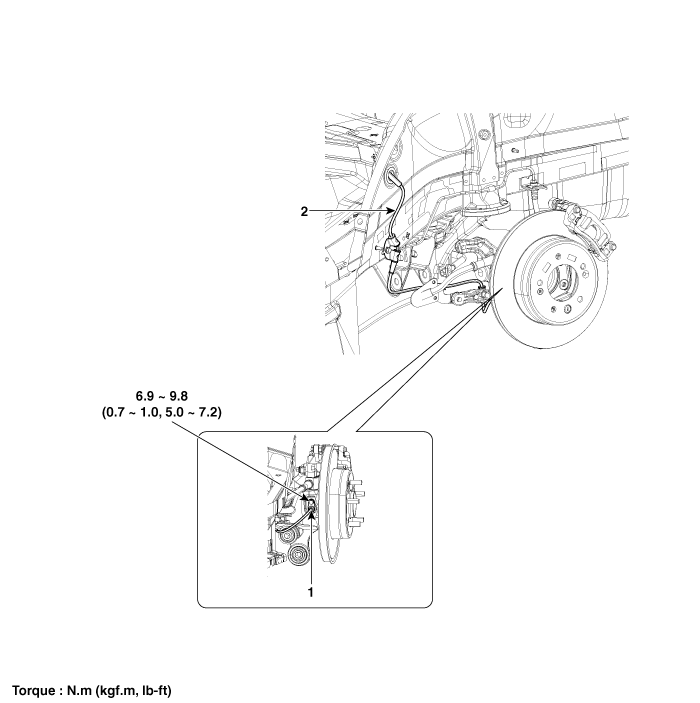

Components

1. Rear wheel speed sensor
2. Rear wheel speed sensor cable
