With the multi function switch in each position, make sure
that continuity exists between the terminals below. If continuity is not
as specified, replace the multi-function switch.
Lighting Switch (Auto Light)
Lighting Switch
Dimmer And Passing Switch
HU : Head lamp high beam
HL : Head lamp low beam
P : Head lamp passing switch
Turn Signal Switch
Front Fog Lamp Switch
Front & Rear Fog Lamp Switch
Wiper And Washer Switch Inspection
With the multi function switch in each position, make sure
that continuity exists between the terminals below. If continuity is not
as specified, replace the multi-function switch.
Wiper Switch
Washer Switch
Inspection (With GDS)
1.
Check BCM input/output specification of multifunction switch
using the GDS. If the specification is abnormal, replace the lamp or
wiper switch.
2.
If diagnosis is required on the multifunction switch, select model and "IPM".
3.

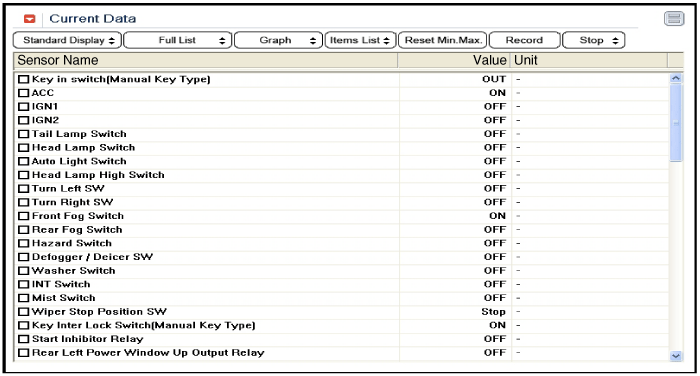

To consult the present input/output value of BCM, "Current
DATA". It provides information of BCM input/output conditions of power
supply, turn signal/brake lamp, headlamp, door, locks, outside mirror,
wiper, auto-light and transmitters etc.
4.

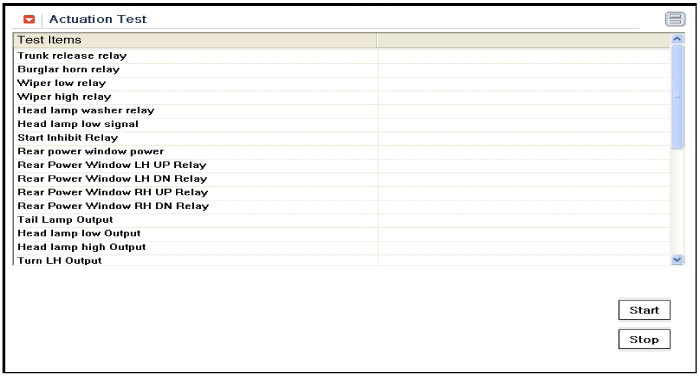

To perform compulsory operation on BCM input factors, select "ACTUATION TEST".
Removal
1.
Remove the steering column upper and lower shrouds after removing 3 screws.
2.
Disconnect the lighting switch connector (A) and wiper & washer switch connector (B).
3.
If necessary of removing the wiper & washer switch (A),
release the lock of wiper switch using tool without removing the
steering wheel and the clock spring.
When removing the wiper & washer switch only, release the lock of wiper switch without removing the steering wheel.
4.
Remove the steering wheel.
(Refer to Steering System - "Steering Column & Shaft")
5.
Remove the clock spring.
(Refer to Restraint - "Airbag Module")
6.
Remove the multifunction switch assembly (A) after loosening the mounting screws (2EA).
Installation
1.
Install the multifunction switch.
2.
Install the clock spring and steering.
3.
Install the steering column upper and lower shrouds.
4.
Install the steering wheel.
Make sure the multifunction switch connectors are plugged in properly.
Removal
1.
Remove the negative (-) battery terminal.
2.
Remove the driver seat in the car.
(Refer to Body - "Front Seat")
3.
Remove the IMS module (A) after loosening 3 screws in the bottom of seat.
4.
Disconnect the IMS module connector (A) and then remove the IMS module (B).
Ins ...
