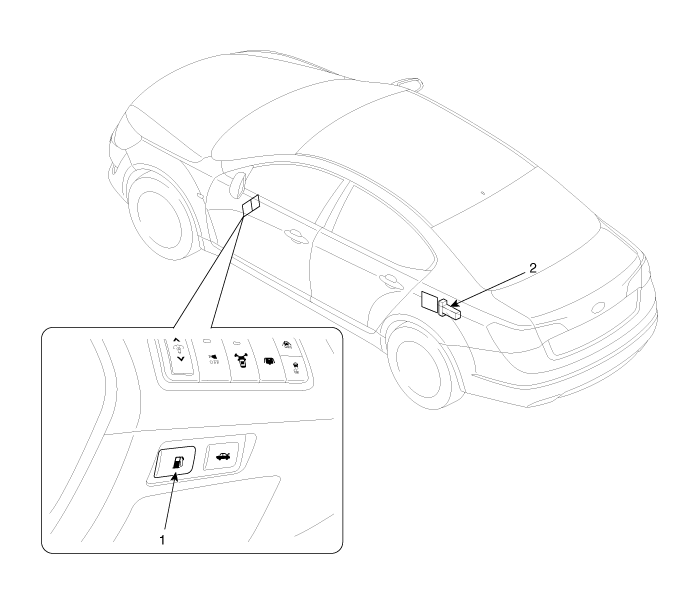

Component Location

1. Fuel filler door open switch
2. Fuel filler door release actuator

    Inspection 1. Open the fuel filler door and remove the fuel filler door release actuator (A) after loosening the mounting bolts. 2. Remove the trunk room left side trim.
