Kia Cadenza YG: Seat Belt Pretensioner / Seat Belt Pretensioner (BPT) Components and Components Location
| Components |

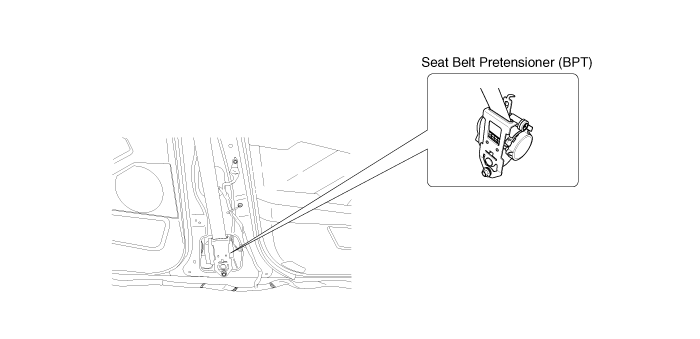

Description The Seat Belt Pretensioners (BPT) are installed inside Center Pillar (LH & RH). When a vehicle crashes with a certain degree of frontal impact, the pretensioner seat belt helps to reduce the severity of injury to the front seat occupants by retracting the seat belt webbing.
Removal 1. Disconnect the battery negative cable, and wait for at least thirty seconds before beginning work. 2. The seat belt emergency fastening device (A) be removed after pushing the lock pin (B) as arrow direction.
