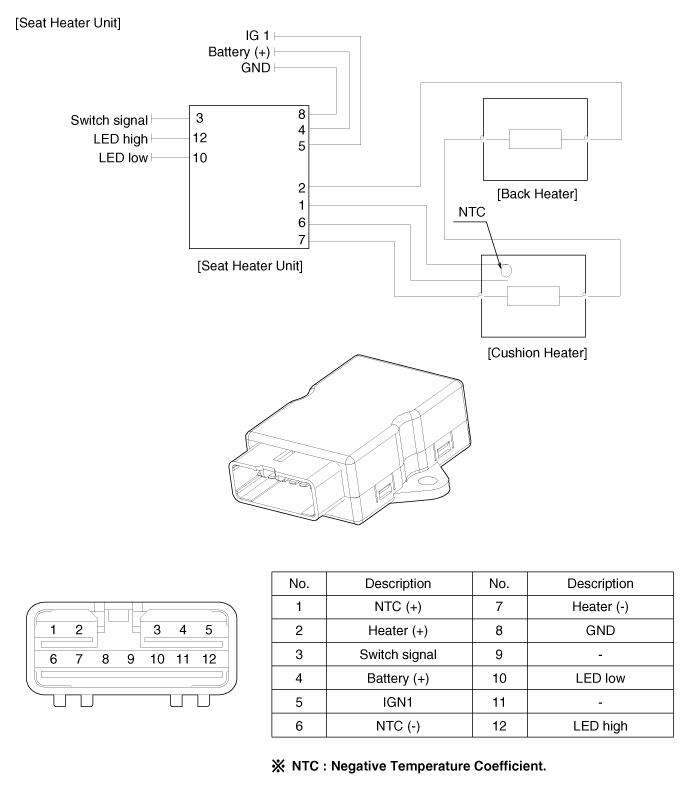

Kia Cadenza: Seat Electrical / Seat Heater Schematic Diagrams

Seat Heater Components and Components Location

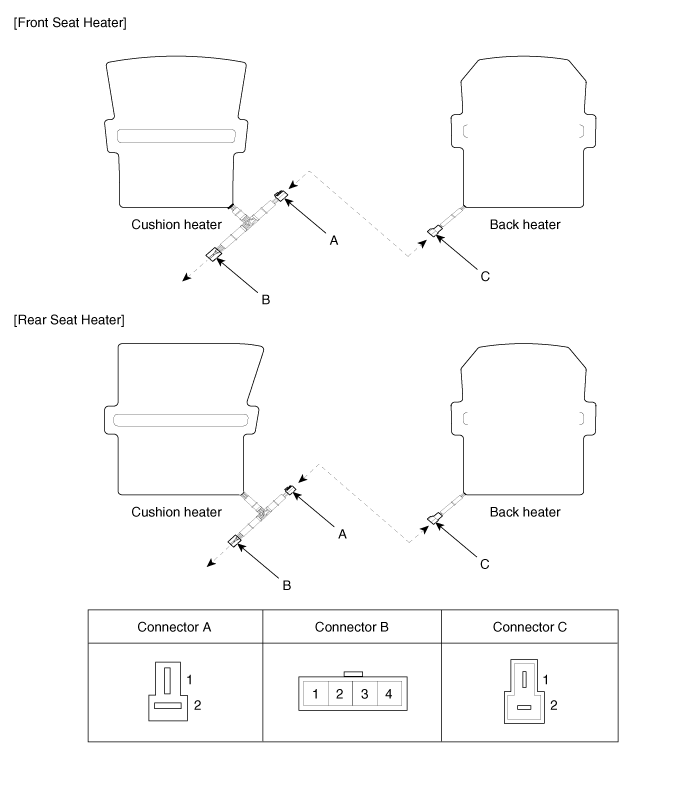

Component Location ...

Seat Heater Repair procedures

Inspection First Seat Heater 1. Check for continuity and measure the resistance between No.1 and NO.4 terminals. No.DescriptionNo.Description1Heater (-)3NTC (+)2NTC (-)4Heater (+) Standar ...

Other information:

Kia Cadenza YG 2016-2025 Service Manual: Photo Sensor Repair procedures

Inspection 1. Ignition "ON" 2. Using the scan tool. 3. Emit intensive light toward photo sensor using a lamp, and check the output voltage change. 4. The voltage will rise with higher intensive light and reduce with lower intensive light. 1. Auto Light Signal2. Auto Light GND3. Ph ...

Kia Cadenza YG 2016-2025 Service Manual: Mode Control Actuator Repair procedures

Inspection 1. Ignition "OFF” 2. Disconnect the connector of mode control actuator. 3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to the terminal 3and grounding terminal 7. 4. Verify that the mode control actuator operates to the vent mo ...
