Kia Cadenza: Automatic transmission operation / Shift lock system

Kia Cadenza YG 2016-2024 Owners Manual / Driving your vehicle / Automatic transmission / Automatic transmission operation / Shift lock system

For your safety, the automatic transmission has a shift lock system which prevents shifting the transmission from P (Park) into R (Reverse) unless the brake pedal is depressed.

To shift the transmission from P (Park) into R (Reverse):

1.Depress and hold the brake pedal.

2.Start the engine or turn the ENGINE START/STOP button in the ON position.

3.Move the shift lever.

If the brake pedal is repeatedly depressed and released with the shift lever in the P (Park) position, a chattering noise & vibration near the shift lever may be heard. It is a normal condition.

WARNING - Shifting from park

Always fully depress the brake pedal before and while shifting out of the P (Park) position into another position to avoid inadvertent motion of the vehicle which could injure persons in or around the vehicle.

Shift-lock override

If the shift lever cannot be moved from the P (Park) position into R (Reverse) position with the brake pedal depressed, continue depressing the brake, then do the following:

1. Place the ENGINE START/STOP button in the OFF position.

2. Apply the parking brake.

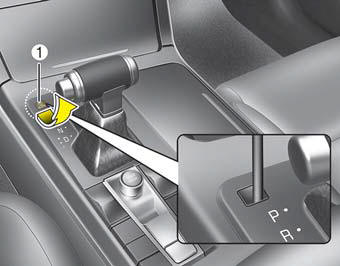

3. Carefully remove the cap (1) covering the shift-lock release access hole.

4. Insert a tool (e.g. flathead screwdriver) into the access hole and press down on the tool.

5. Move the shift lever.

6. Remove the tool from the shift-lock override access hole then install the cap.

7. Have your vehicle inspected by an authorized Kia dealer immediately.

ENGINE START/STOP button interlock system

The ENGINE START/STOP button will not change to the OFF position unless the shift lever is in the P (Park) position.

Paddle shifter
The paddle shifter is available when the shift lever is in the D position or the manual mode. With the shift lever in the D position The paddle shifter will operate when the vehicle speed is ...

Good driving practices
Never move the gear shift lever from P (Park) to any other position with the accelerator pedal depressed. Never move the gear shift lever into P (Park) when the vehicle is in motio ...
