Kia Cadenza YG: Body Dimensions / Side Body Body Repair

Kia Cadenza YG 2016-2021 Service Manual / Body (Interior and Exterior) / Body Dimensions / Side Body Body Repair

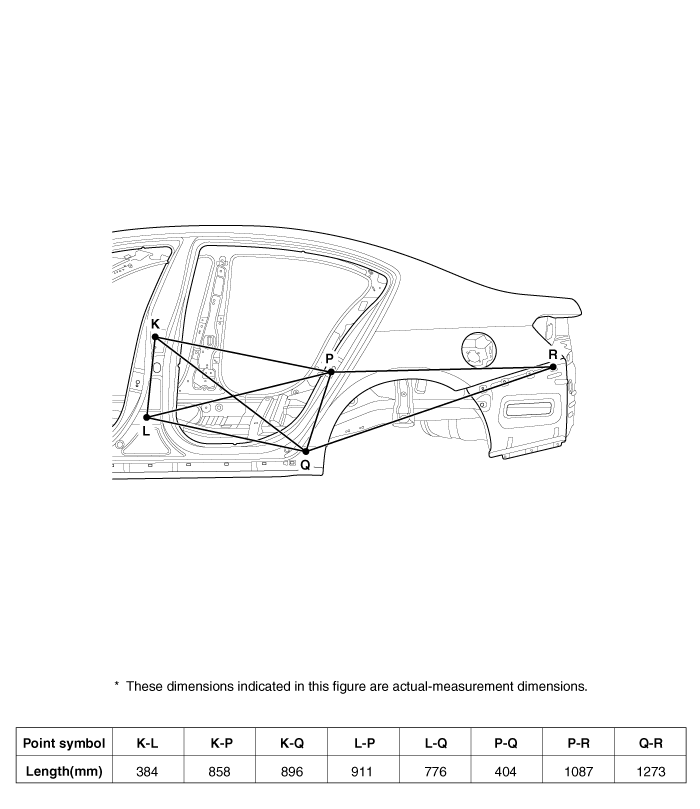

Side Body A

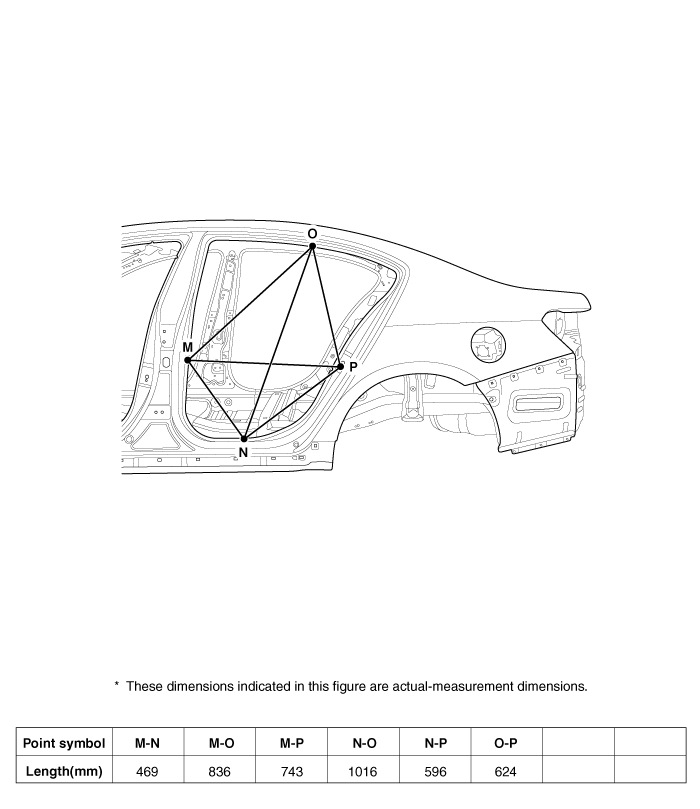

Side Body B

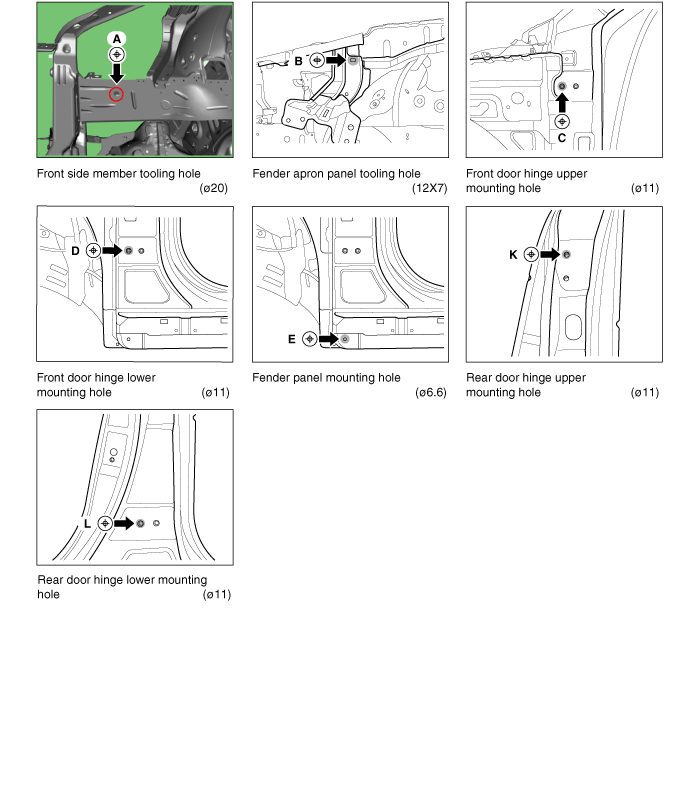

Side Body C

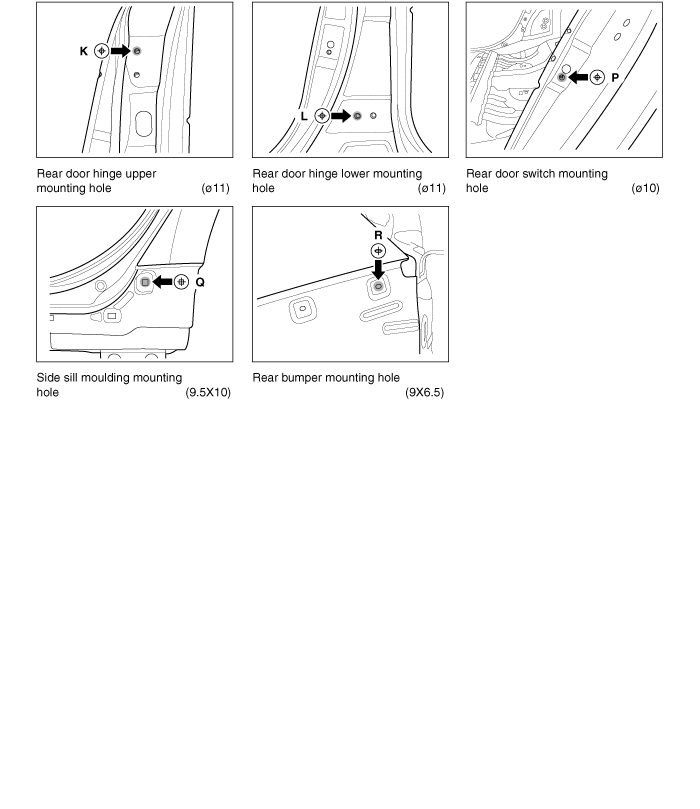

Side Body D

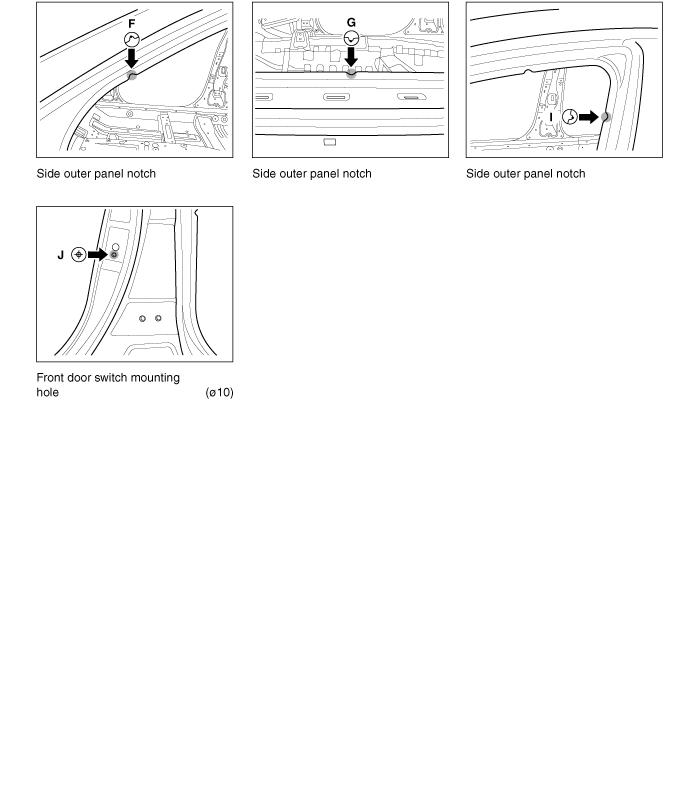

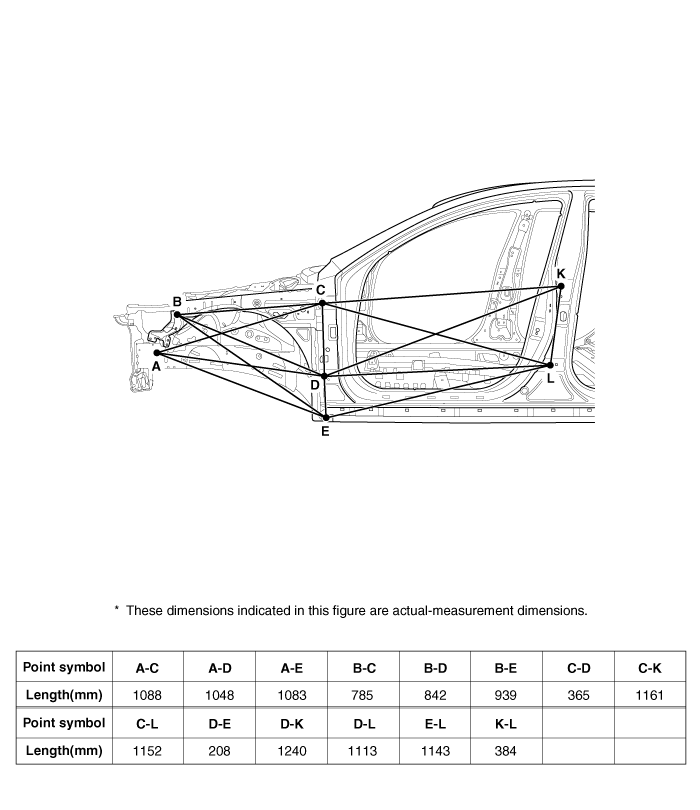

    Front Body A Front Body B Front Body C Front Body D

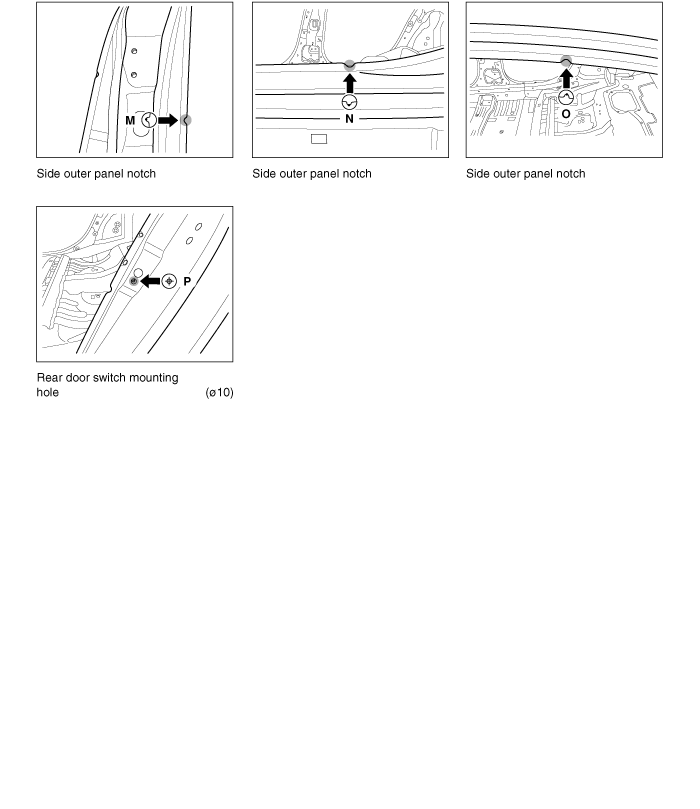

    Interior A Interior B Interior C Interior D
