Kia Cadenza: Smart Cruise Control (SCC) / To convert to cruise control mode

Kia Cadenza YG 2016-2024 Owners Manual / Driving your vehicle / Smart Cruise Control (SCC) / To convert to cruise control mode

The driver may choose to only use the cruise control mode (speed control function) by doing as follows:

1. Turn Smart Cruise Control on (the cruise indicator light will be on but the system will not be activated).

2. Push the distance to distance switch for more than 2 seconds.

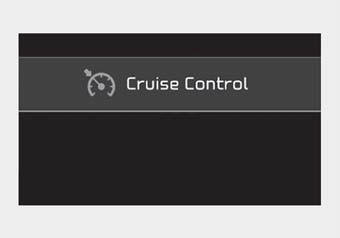

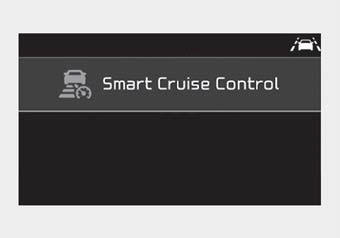

3. Choose between "Smart Cruise Control" and "Cruise Control".

When the system is canceled using the CRUISE button or the CRUISE button is used after the engine is turned on, the Smart Cruise Control mode will turn on.

WARNING

When using the cruise control mode, you must manually adjust the distance to other vehicles as the system will not automatically brake to slow down for other vehicles.

Smart Cruise Control malfunction message
The message will appear when the headway control is not functioning normally. Take your vehicle to an authorized Kia dealer and have the system checked. CAUTION Do not install accessor ...

Limitations of the system
Smart Cruise Control may have limits to its ability to detect distance to the vehicle ahead due to road and traffic conditions. ...
