Kia Cadenza: Automatic Transaxle Control System / Torque Converter Control Solenoid Valve (T/CON_VFS) Components and Components Location

Kia Cadenza YG 2016-2024 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Torque Converter Control Solenoid Valve (T/CON_VFS) Components and Components Location

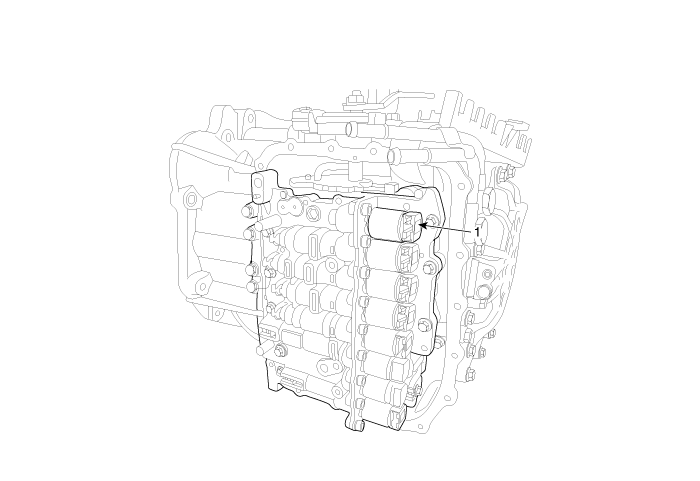

Component Location

1. Torque Converter Control Solenoid Valve (T/CON_VFS)
Torque Converter Control Solenoid Valve (T/CON_VFS) Specifications
Specification Item SpecificationControl typeN/L (Normal Low)Control pressure kpa (kgf/cm², psi)"9.81 ~ 500.14 (0.1 ~ 5.1, 1.42 ~ 72.54)"Current value (mA)50 ~ 850Coil resistance(Ω)5.1 ± 0.3 ...

Torque Converter Control Solenoid Valve (T/CON_VFS) Description and Operation
Description • Torque converter control solenoid valve is a Variable Force Solenoid (VFS) type. • When TCM supplies variable current to solenoid valve, hydraulic pressure of t ...
