Kia Cadenza: Towing / Towing service

Kia Cadenza YG 2016-2024 Owners Manual / What to do in an emergency / Towing / Towing service

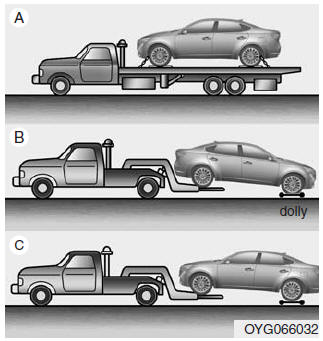

If emergency towing is necessary, we recommend having it done by an authorized Kia dealer or a commercial tow-truck service. Proper lifting and towing procedures are necessary to prevent damage to the vehicle. The use of wheel dollies or flatbed is recommended.

It is acceptable to tow the vehicle with the rear wheels on the ground (without dollies) and the front wheels off the ground.

If any of the loaded wheels or suspension components are damaged or the vehicle is being towed with the front wheels on the ground, use a towing dolly under the front wheels. When being towed by a commercial tow truck and wheel dollies are not used, the front of the vehicle should always be lifted, not the rear.

✽ NOTICE

If the EPB does not release normally, take your vehicle to an authorized Kia dealer by loading the vehicle on a flatbed tow truck and have the system checked.

WARNING - Side and curtain Air bag

If your vehicle is equipped with side and curtain air bag, set the the ENGINE START/STOP button to ACC position when the vehicle is being towed. The side and curtain air bag may deploy when the ENGINE START/STOP button to ON position and the rollover sensor detects the situation as a rollover.

CAUTION - Towing

When towing your vehicle in an emergency without wheel dollies :

1. Set the ENGINE START/STOP button to ACC position.

2. Place the transmission shift lever in N (Neutral).

3. Release the parking brake.

CAUTION - Towing gear position

Failure to place the transmission shift lever in N (Neutral) may cause internal damage to the transmission.

Towing
...

Removable towing hook
1. Open the trunk, and remove the towing hook from the tool case. 2. Remove the hole cover pressing the upper part of the cover on the bumper. 3. Install the towing hook by turning it cloc ...
