Kia Cadenza: Automatic Transaxle Control System / Transaxle Oil Temperature Sensor Schematic Diagrams

Kia Cadenza YG 2016-2025 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Transaxle Oil Temperature Sensor Schematic Diagrams

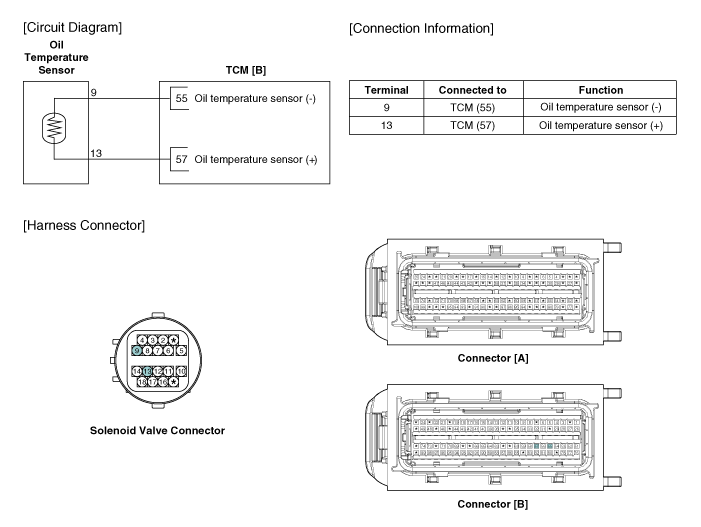

Circuit Diagram

Transaxle Oil Temperature Sensor Specifications
Specifications ▷ Type: Negative Thermal Coefficient(NTC) Type Temp.[(°C)°F]Resistance (kΩ)(-40)-4048.1(-20)-4.015.6(0)32.05.88(20)68.02.51(40)104.01.11(60)140.00.61(80)176.00.32(100)212.00 ...

Transaxle Oil Temperature Sensor Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery") 3. Disconnect the solenoid valve connector (A). 4. Me ...
