Kia Cadenza: Hydraulic System / Valve Body Components and Components Location

Kia Cadenza YG 2016-2024 Service Manual / Automatic Transaxle System / Hydraulic System / Valve Body Components and Components Location

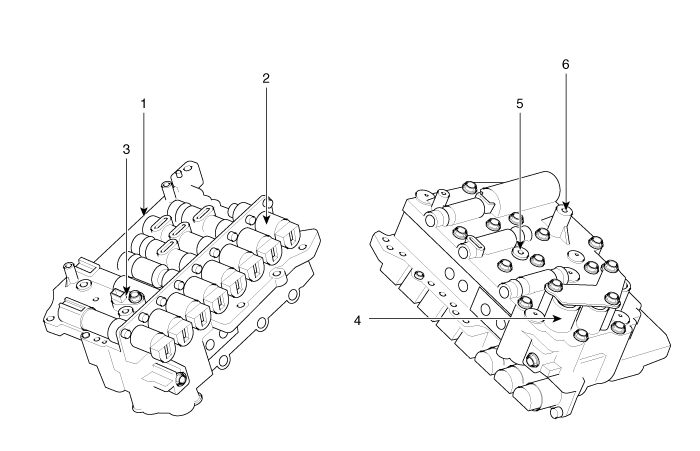

Components Location

1. PCV adjust screw
2. Solenoid valve
3. Oil temperature sensor
4. Accumulator
5. Low & reverse brake(LR/B) pressure flow hole
6. Under drive brake (UD/B) pressure flow hole

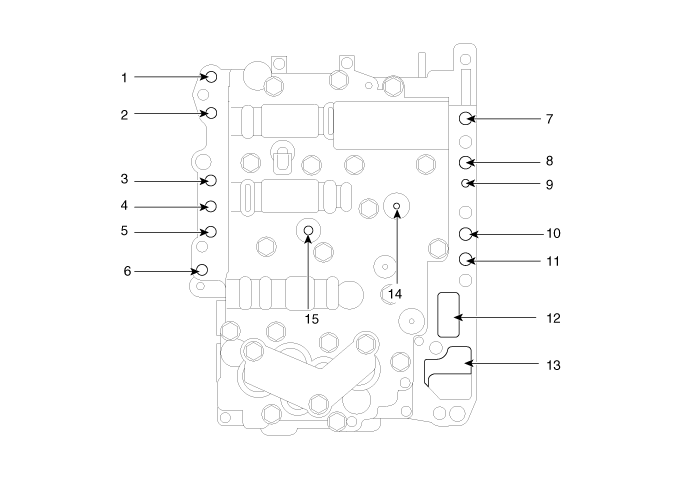

Valve Body Flow

1. To cooler
2. From cooler
3. Lubrication(rear)
4. Overdrive pressure
5. Reducing pressure (red2)
6. Reducing pressure (red1)
7. From damper pressure
8. To damper pressure
9. Lubrication(front)
10. 35R clutch pressure
11. 26 brake pressure
12. From oil pump
13. To oil pump
14. Underdrive pressure
15. Low & reverse pressure

Valve Body Description and Operation
Description The valve body is essential to automatic transaxle control and consists of various valves used to control the oil feed from the oil pump. Specifically, these valves consist of press ...

Valve Body Repair procedures
Removal 1. Remove the under cover. (Refer to Engine Mechanical System - "Engine Room Under Cover"). 2. Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain ...
