Kia Cadenza: Charging System / Battery Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Engine Electrical System / Charging System / Battery Components and Components Location

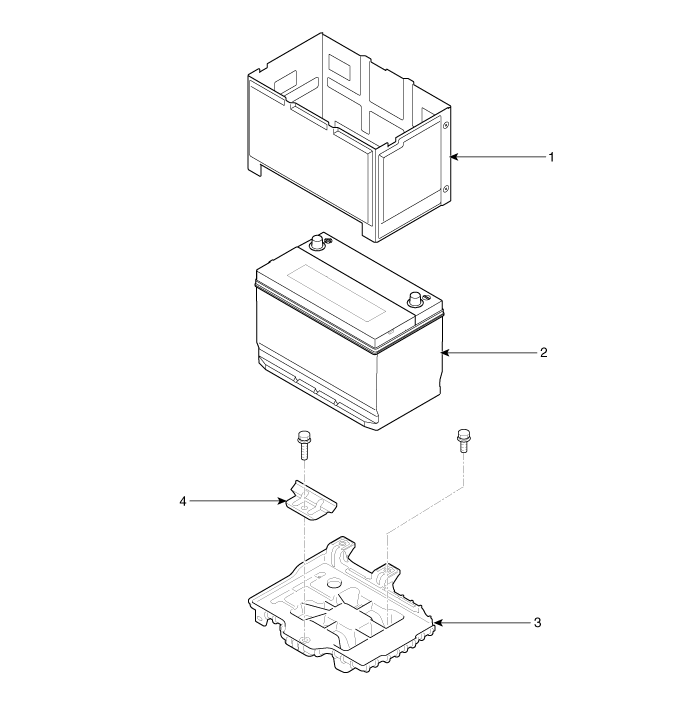

Components

1. Battery insulation pad
2. Battery

3. Battery tray
4. Battery mounting bracket

Battery Description and Operation

Description 1. The CMF(Closed Maintenance Free) battery is, as the name implies, totally maintenance free and has no removable battery cell caps. 2. The CMF(Closed Maintenance Free) batter ...

Battery Repair procedures

Removal 1. Remove the air duct (A). 2. Disconnect the battery (-) terminal (A)and then (+) terminal (B). 3. Remove the battery mounting bracket (D) and the insulation pad (C), and then rem ...
