Kia Cadenza YG: Keyless Entry And Burglar Alarm / Components and Components Location
| Component Location |

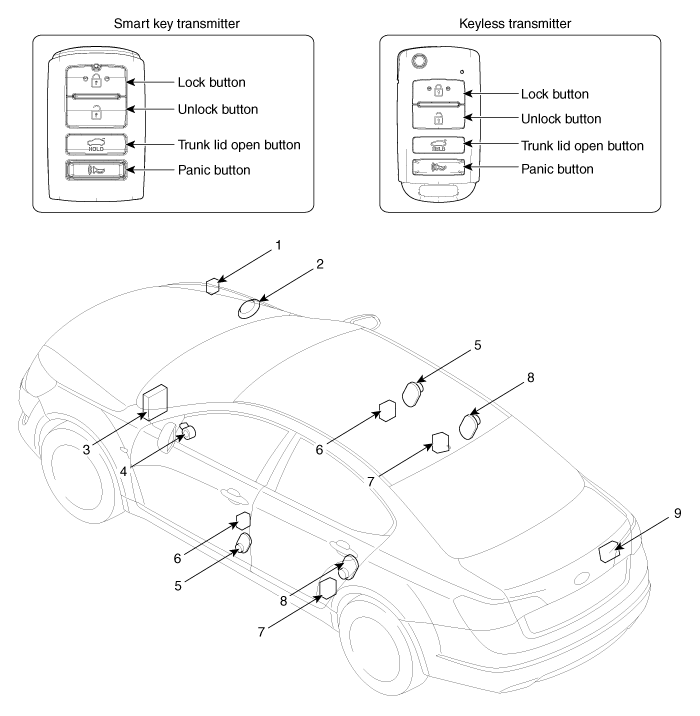

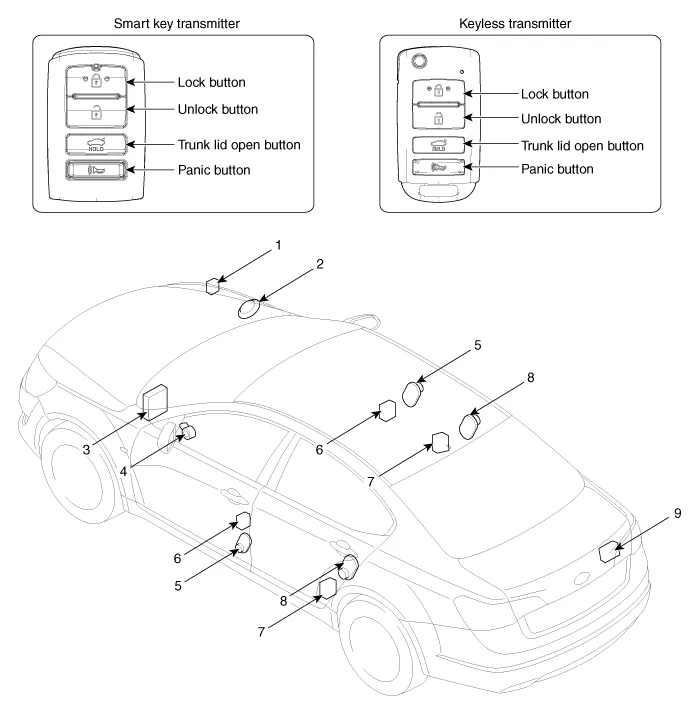

| 1. Hood switch 2. Burglar horn 3. IPM and RF antenna 4. Key warning switch 5. Front door switch | 6. Front door lock actuator & switch 7. Rear door lock actuator & switch 8. Rear door switch 9. Trunk lid open switch |
Specification ItemDescriptionPower source3VOperating temperature-20°C ~ +60°C (-4°F ~ +140°F)RF ModulationFSKLF ModulationASKRF frequency433.92MHzBattery1EA (CR2032) An inappropriately disposed battery can be harmful to the environment and human health.
Description Burglar Alarm State [B/A State] B/A StateDescriptionDISARM 1) In "DISARM" state, no vehicle start inhibition. So, when door, hood, or Tailgate is opened, there is no alarm sound and flashing.
Other information:
Kia Cadenza YG 2016-2021 Service Manual: Schematic Diagrams
Circuit Diagram SVM System Input/Output 1. Camera input ItemSpecificationLens angle of view190 degreesAngle of viewHorizontal186 degreesVertical135 degreesFunctionProvides the original image of the wide angle image (no additional function)Application locationSame camera applied to the front, rear, left and right 2.
Kia Cadenza YG 2016-2021 Service Manual: Description and Operation
Description System Overview The System offers the following features: – Human / machine interface through a 1-stage button, for terminal switching and engine start. – Control of external relays for ACC / IGN1 / IGN2 terminal switching and STARTER, without use of mechanical ignition switch.
