Kia Cadenza YG: IMS (Integrated Memory) / Components and Components Location

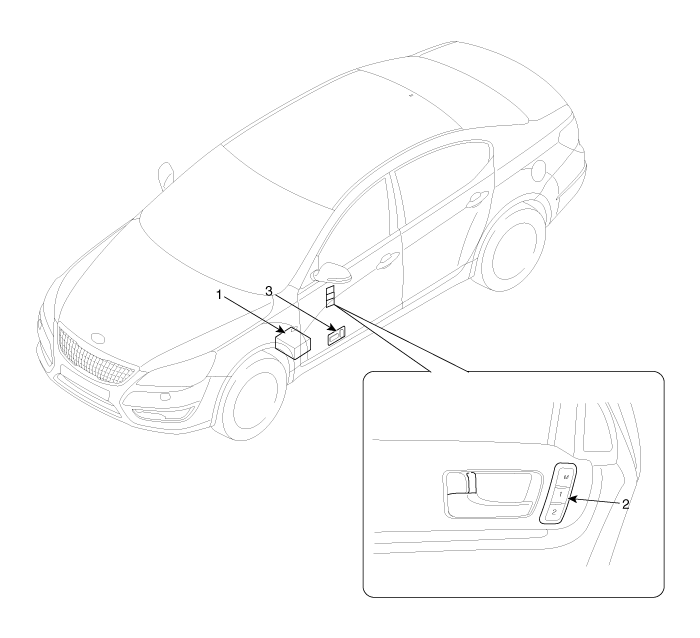

Component Location

1. Seat Memory Unit (IMS)
2. IMS control switch
3. IMS driver power seat control

    Specifications IMS Electrical System ItemSpecificationRating voltageDC 12VOperating voltageDC 9V ~ 16VOperating temperature-30°C ~ +80°CMaintaining temperature-40°C ~ +85°CMax, humid95%Consumption currentMAX 700mADark currentBelow 2mA Motor Electrical System ItemSpecificationRating voltage13.

    Circuit Diagram Input/Output Specification Connector Pin Lay Out IMS input/output pin information NoSignal NameI/OContentsRemarkA1---A2FR height motor upOFR height motor up outputA3RR height motor upORR height motor up outputA4Recline motor FRORecline motor FR outputA5Slide motor FROSlide motor FR outputA6---A7FR height motor downOFR height motor down outputA8---A9---A10RR height motor downORR height motor down outputA11Recline motor RRORecline motor RR outputA12Slide motor RROSlide motor RR outputB1GND(Power)IPower B+ for operating motorB2GND (Power)IPower GND for operating motorB3B+(Power)IPower B+ for operating motorB4---B5GND (Power)IPower GND for operating motorC1---C2---C3Slide FR manual switchISlide FR manual switch inputOn : GNDC4Recline FR manual switchIRecline FR manual switch inputOn : GNDC5FR height up manual switchIFR height up manual switch inputOn : GNDC6RR height up manual switchIRR height up manual switch inputOn : GNDC7Slide motor sensorISlide motor sensor inputPulse signalC8Recline motor sensorIRecline motor sensor inputPulse signalC9FR height motor sensorIFR height motor sensor inputPulse signalC10Sensor Vcc(Seat)OVCC for operating sensor5VC11---C12---C13Slide RR manual switchISlide RR manual switch inputON : GNDC14Recline RR manual switchIRecline RR manual switch inputON : GNDC15FR height down manual switchI FR height down manual switch inputON : GNDC16RR height down manual switch- RR height down manual switch inputON : GNDC17---C18---C19---C20---D1---D2RR height up sensorIRR height up motor sensorPulse signalD3---D4CAN highI/OCAND5CAN lowI/OCAND6---D7IGN1IIGN1 inputBATD8B+(ECU)IECU power inputBATD9GND(ECU)IECU GNDD10---D11---D12---D13---D14---D15---D16--- Communication System
