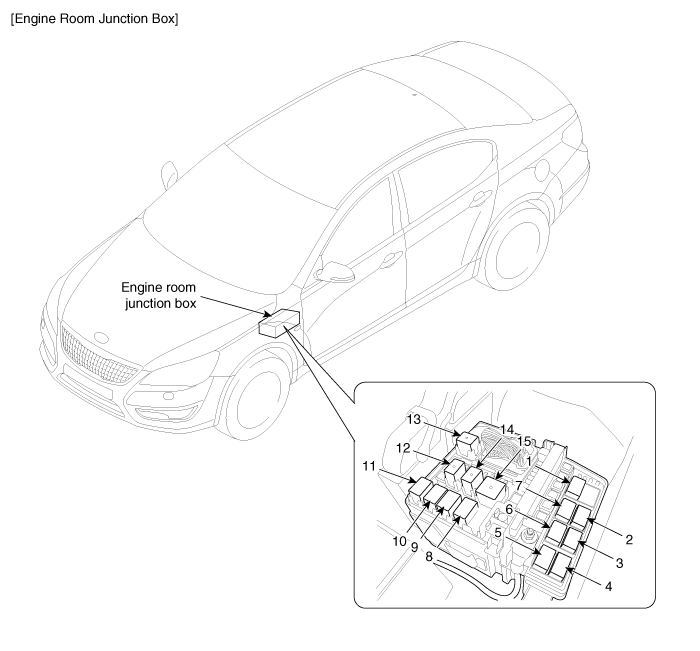

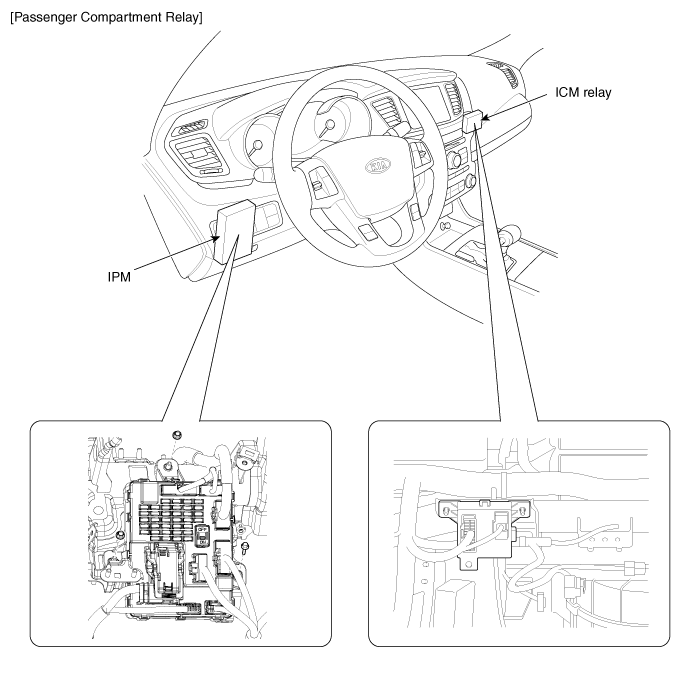

Component Location

1. Front deicer relay
2. IGN2 relay
3. Rain sensor relay
4. Blower relay
5. Burglar alarm horn relay
6. Wiper relay
7. IGN1 relay

8. Cooling pan relay #1
9. Cooling pan relay #2
10. Start relay
11. Rear defogger relay
12. Horn relay
13. ACC relay
14. Fuel pump relay
15. ECU relay

Fuses And Relays

...

Relay Box (Engine Compartment) Components and Components Location

Components ...
