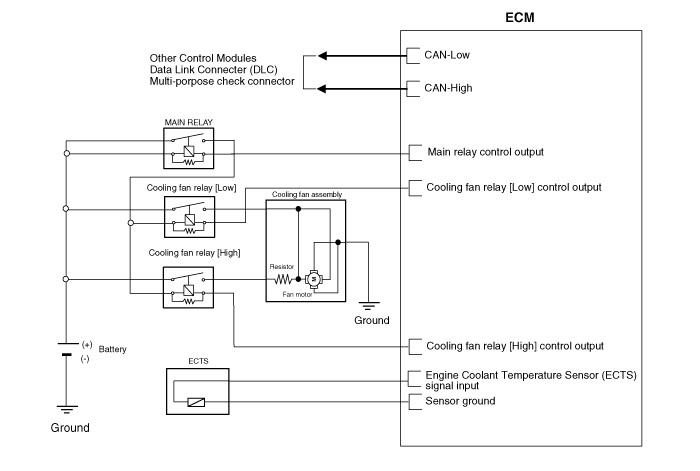

| Circuit Diagram |

Specifications ItemSpecificationFan typePULLERFan speed controlResistor (HI-LOW-OFF)Air flow rate [㎥/h (yd³/h)]2,650 (3,466) -10% min.Fan speed (rpm)1,890 ±10%Current (A)19.
Removal and Installaton Cooling Fan Assembly 1. Disconnect the battery negative terminal. 2. Remove the air duct (A). 3. 3. Loosen the upper hose fixing bolt (A), and disconnect the fan motor connector (B).
Description 1. The photo sensor is located at the center of defrost nozzle. 2. The photo sensor contains a photovoltaic (sensitive to sunlight) diode. The solar radiation received by its light receiving portion, generates an electromotive force in proportion to the amount of radiation received which is transferred to the automatic tem
Inspection 1. Press the OFF switch more then 4 times within 2 seconds while pressing the MODE switch. DisplayFail description00Normal50Cluster ionizer fault * Diagnostic procedure refer to DTC code. Replacement 1. Disconnect the negative (-) battery terminal.
