Kia Cadenza: Warning and control / Detecting Sensor

Kia Cadenza YG 2016-2024 Owners Manual / Driving your vehicle / Rear Cross-Traffic Collision Warning (RCCW)/ Rear Cross-Traffic Collision-Avoidance Assist (RCCA) / Warning and control / Detecting Sensor

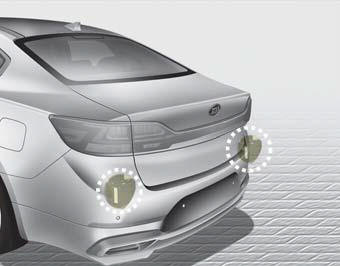

The rear corner radars are the sensors inside the rear bumper for detecting the side/rear areas. A foreign matter stained on the rear corner radars and the bumper, the sensor will not function properly.

Always keep the rear bumper clean for proper operation of the system.

CAUTION

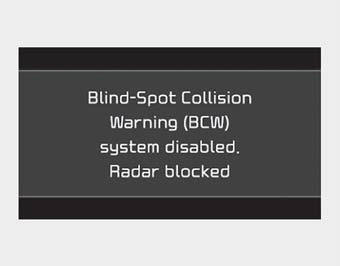

Blind-Spot Collision Warning (BCW) system disabled. Radar blocked

• This warning message may appear when:

- One or both of the rear corner radar sensors on the rear bumper is blocked by dirt or snow or a foreign object.
- Driving in rural areas where the sensor does not detect another vehicle for an extended period of time.
- When there is inclement weather such as heavy snow or rain.
- When a trailer or carrier is connected to the rear corner radar sensor area.

If any of these conditions occur, the system will turn off automatically.

✽ NOTICE

Turn off BCW, BCA and RCCA when a trailer or carrier is installed.

When BCW canceled warning message is displayed in the cluster, check to make sure that the rear bumper is free from any dirt or snow in the areas where the sensor is located. Remove any dirt, snow, or foreign material that could interfere with the radar sensors.

After any dirt or debris is removed, RCCA system should operate normally after about 10 minutes of driving the vehicle.

If the system does not work normally even though the foreign substance, trailer or carrier, or other equipment is removed, have the system checked by an authorized Kia dealer.

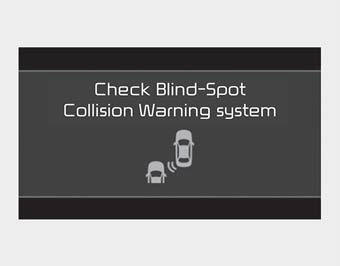

Check Blind-Spot Collision Warning system

If there is a problem with BCW system, a warning message will appear. The system will turn off automatically. RCCW and RCCA will not operate also if BCW system turns off due to malfunction. In this case, have the system checked by an authorized Kia dealer.

Rear Cross-Traffic Collision-Avoidance system
If the risk of collision is detected while RCCW is generated, brake is controlled. The instrument cluster will inform the driver of the brake control. If the rear view monitor system is in act ...

Limitations of the system
The driver must be cautious in the below situations, because the system may not detect other vehicles or objects in certain circumstances. When a trailer or carrier is installed. The ve ...
