Kia Cadenza: Warning and control / Rear Cross-Traffic Collision-Avoidance system
If the risk of collision is detected while RCCW is generated, brake is
controlled.

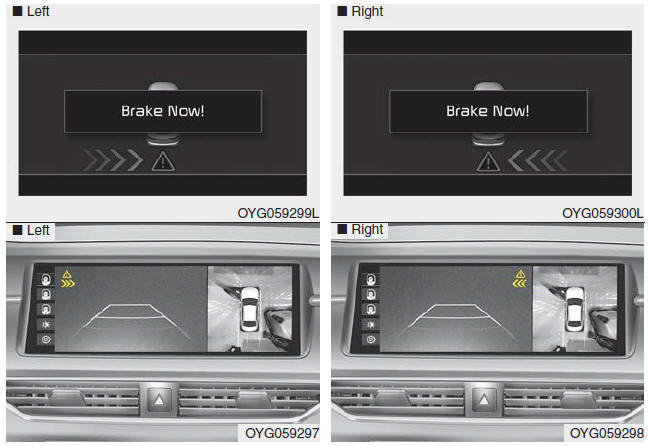

The instrument cluster will inform the driver of the brake control. If
the rear view monitor system is in activation, a message will also appear
on the Infotainment System screen.
After the brake control the driver
must immediately depress the brake
pedal and check the surroundings.
- The brake activation by the system
lasts for about 2 seconds only.
The driver must pay attention as
the brake is disengaged after the
time.
- The brake control by the system is
cancelled if the driver depresses
the pedal with sufficient power.
- Brake control is activated once for
each right/left approach after shifting
the shift lever to R (Reverse).
The brake control may not operate
properly according to the status of
the ESC (Electronic Stability
Control). The same warning message
is displayed on the instrument
cluster for this case also.
- When the ESC (Electronic Stability
Control) warning light is on.
- When the ESC (Electronic Stability
Control) is engaged in a different
function.
- When the operation condition of
Rear Cross-Traffic Collision
Warning is satisfied, the warning
will occur every time a vehicle
approaches the side or rear of your
stopped (0 mph (0 km/h) vehicle
speed) vehicle.
- The driver should always exercise
extreme caution while operating
the vehicle, whether or not the
warning light on the outside
rearview mirror illuminates or there
is a warning alarm.
- Playing the vehicle audio system at
high volume may prevent you from
hearing the system's warning
sounds.
CAUTION
- The system's warning or
brake may not operate properly
if the left/right of your vehicle's
rear bumper is obscured
by a vehicle or obstacle.
- The warning of Rear Cross-
Traffic Collision Warning may
not sound while other system's
warning sounds.
- If any other warning sound
such as seat belt warning
chime is already generated,
Rear Cross-Traffic Collision
Warning may not sound.
WARNING
- Drive safely even though the
vehicle is equipped with a
Rear Cross-Traffic Collision
Warning and Rear Cross-
Traffic Collision-Avoidance
Assist. Do not solely rely on
the system but check your
surrounding when backing
the vehicle up.
- The driver is responsible for
accurate brake control.
- Always exercise extreme caution
while driving. Rear Cross-
Traffic Collision Warning and
Rear Cross-Traffic Collision-
Avoidance Assist may not
operate properly or unnecessarily
operate in accordance
with your driving situations.
- Rear Cross-Traffic Collision-
Avoidance Assist is not a substitute
for safe driving practices,
but a convenience function
only. It is the responsibility
of the driver to always
drive cautiously to prevent
unexpected and sudden situations
from occurring. Pay
attention to the road conditions
at all times.
