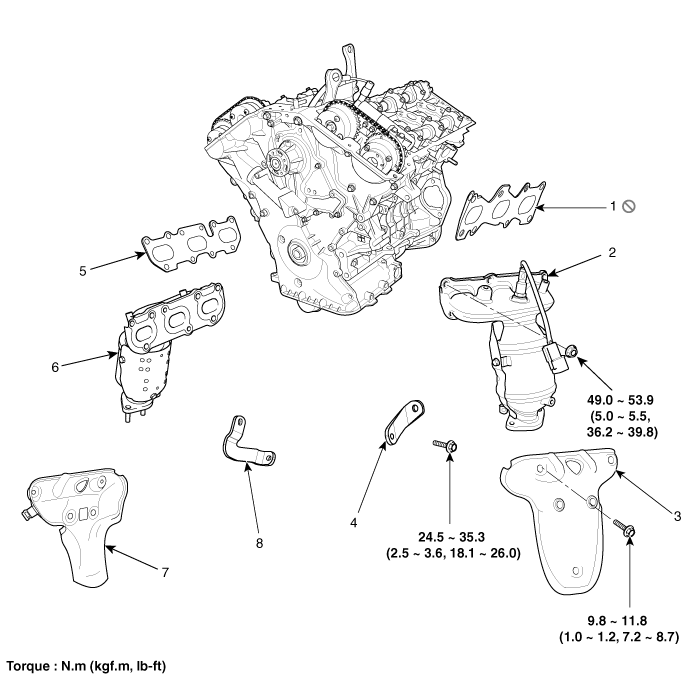

Components

1. LH Exhaust manifold gasket
2. LH Exhaust manifold
3. LH Heat protector
4. LH Exhaust manifold stay
5. RH Exhaust manifold gasket
6. RH Exhaust manifold
7. RH Heat protector
8. RH Exhaust manifold stay

Intake Manifold Repair procedures
Removal and Installation 1. Remove the surge tank. (Refer to Intake And Exhaust System - "Surge Tank") 2. Remove the low pressure fule line. (Refer to Fuel System - "Fuel Line") 3. Rem ...

Exhaust Manifold Repair procedures
Removal and Installation [LH] 1. Disconnect the LH front and rear heated oxygen sensor (HO2S) connector. (Refer to Fuel System - "Heated Oxygen Sensor (HO2S)") 2. Remove the front muffler ...
