Kia Cadenza: Ignition System / Ignition Coil Schematic Diagrams

Kia Cadenza YG 2016-2025 Service Manual / Engine Electrical System / Ignition System / Ignition Coil Schematic Diagrams

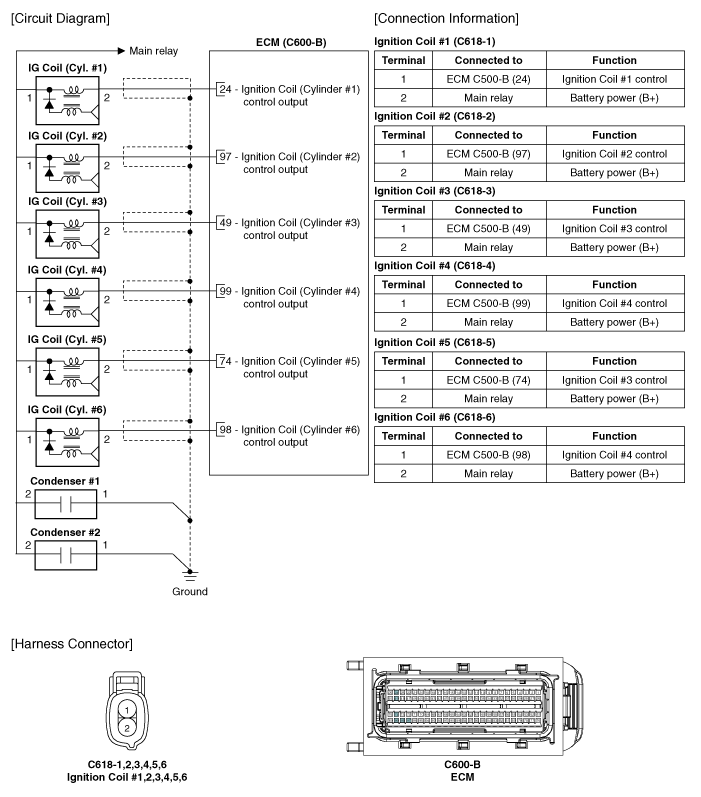

Circuit Diagram

Ignition Coil Specifications
Specification ItemSpecification Primary Coil Resistance (Ω)0.62 ± 10% [20°C (68°F)]Secondary Coil Resistance (kΩ)7.0 ± 15% [20°C (68°F)] ...

Ignition Coil Repair procedures
Removal [Ignition Coil #2, #4, #6] 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Remove the engine cover. 3. Disconnect the ignition coil connector (A) ...
