Components

Component Functions
No.
Components
Quantity
Major Role
1
SVM Unit
1
–
Input video information from 4 channel cameras and process display
–
Vehicle communication (CAN) and system control
–
Screen output in 8 view modes
2
Ultra optical camera
(190 degrees)
4
–
Record vehicle''s surrounding area
3
AVN Head Unit
1
–
Provide driver with video via SVM ECM output
–
Send user input data to SVM ECM
4
SVM Switch
1
–
Input video feed in Front Mode

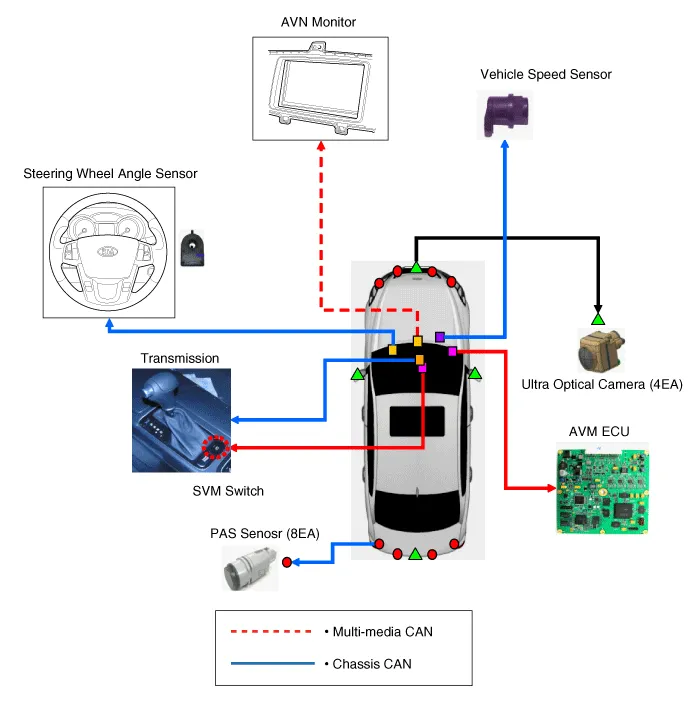

    Description Surround View Monitoring System (SVM) is the system that allows video monitoring of 360 degrees around the vehicle. The system includes 4 ultra optical camera mounted around the vehicle (front, both sides, rear).
