Kia Cadenza YG: Charging System / Battery Components and Components Location

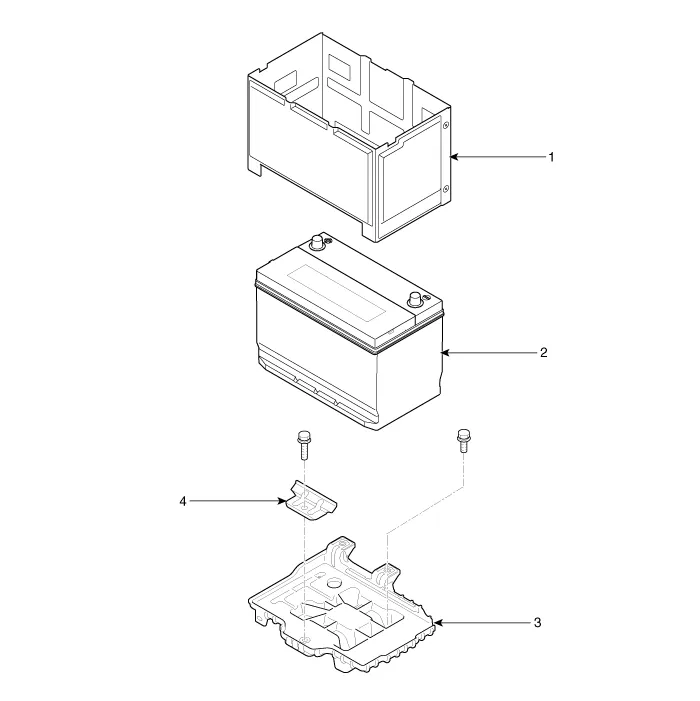

| Components |
| 1. Battery insulation pad 2. Battery | 3. Battery tray 4. Battery mounting bracket |
Description 1. The CMF(Closed Maintenance Free) battery is, as the name implies, totally maintenance free and has no removable battery cell caps.
Removal 1. Remove the air duct (A). 2. Disconnect the battery (-) terminal (A)and then (+) terminal (B). 3. Remove the battery mounting bracket (D) and the insulation pad (C), and then remove the battery (E).
Other information:
Kia Cadenza YG 2016-2021 Service Manual: Schematic Diagrams
Circuit Diagram SVM System Input/Output 1. Camera input ItemSpecificationLens angle of view190 degreesAngle of viewHorizontal186 degreesVertical135 degreesFunctionProvides the original image of the wide angle image (no additional function)Application locationSame camera applied to the front, rear, left and right 2.
Kia Cadenza YG 2016-2021 Service Manual: Repair procedures
Removal 1. Remove the trunk trim in the trunk after removing the screws and clips. (Refer to Body - "Trunk") 2. Remove the camera holder (A) as shown arrow direction, and then remove the back view camera (B). Installation 1. Install the back view camera and camera holder.
