Kia Cadenza YG: Horn / Components and Components Location

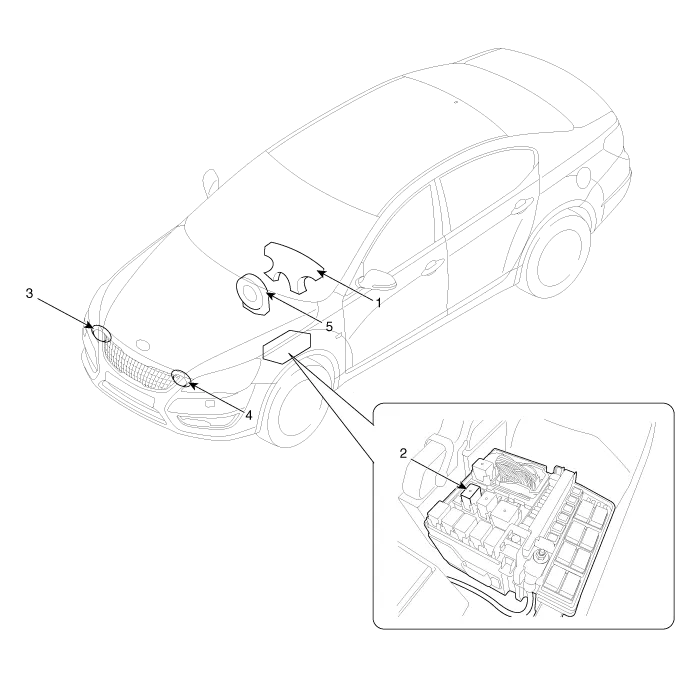

| Component Location |
| 1. Horn switch 2. Horn relay (Engine room compartment) 3. Horn - High pitch | 4. Horn - Low pitch 5. Clock spring |
Inspection Test the horn by connecting battery voltage to the 1 terminal and ground the 2 terminal. The horn should make a sound. If the horn fails to make a sound, replace it.
