Kia Cadenza YG: Air Conditioning System / Compressor Components and Components Location

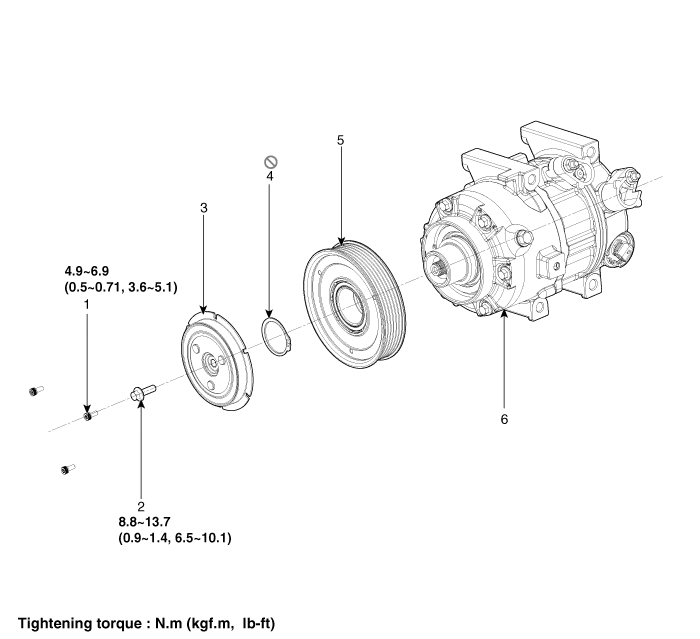

| Components |
| 1. Screw 2. Blot 3. Limiter Assembly | 4. Retainer Ring 5. Pulley 6. Compressor Assembly |
Replacement 1. Discharge refrigerant from refrigeration system. 2. Replace faulty tube or hose. Cap the open fittings immediately to keep moisture or dirt out of the system.
Removal 1. If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off.
