Kia Cadenza YG: Engine And Transmission Assembly / Engine Mounting Components and Components Location

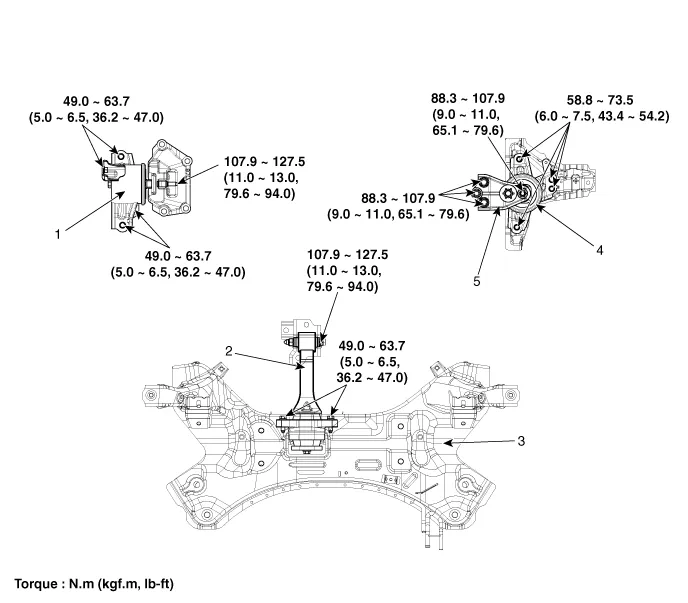

| Components |
| 1. Transaxle mounting bracket 2. Roll rod bracket 3. Sub frame | 4. Engine mounting bracket 5. Engine mounting support bracket |
Removal and Installation 1. Remove the engine room front under cover (A) and the side covers (B). When removing the under covers (B), unfasten the mounting bracket bolts and then remove the under cover and mounting bracket assembly.
Removal and Installation Engine Mounting Bracket 1. Disconnect the battery negative terminal. 2. Remove the engine room under cover. (Refer to Engine And Transaxle Assembly – “Engine Room Under Cover”) 3.
