Kia Cadenza YG: Exterior / Front Door Components and Components Location

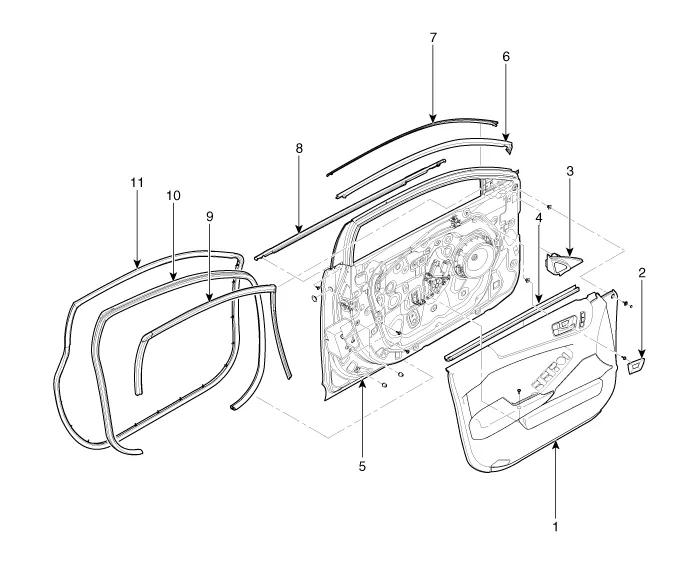

| Components |
| 1. Front door trim 2. Front door inside cap 3. Front door frame inner cover 4. Front door belt inner weatherstrip 5. Front door panel 6. Front door upper opening weatherstrip | 7. Front door frame moulding 8. Front door belt outer weatherstrip 9. Front door window glass run assembly 10. Front door body side weatherstrip 11. Front door side weatherstrip |
