Kia Cadenza YG: Engine Control System / Fuel Pressure Control Valve (FPCV) Schematic Diagrams

Kia Cadenza YG 2016-2021 Service Manual / Engine Control / Fuel System / Engine Control System / Fuel Pressure Control Valve (FPCV) Schematic Diagrams

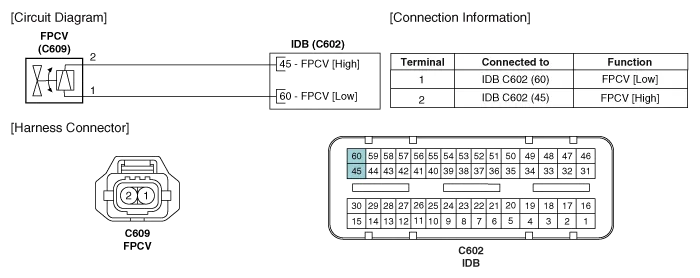

Circuit Diagram

    Signal Waveform

    Inspection 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Disconnect the fuel pressure regulator valve connector.
