Kia Cadenza YG: Engine Control System / Injector Troubleshooting

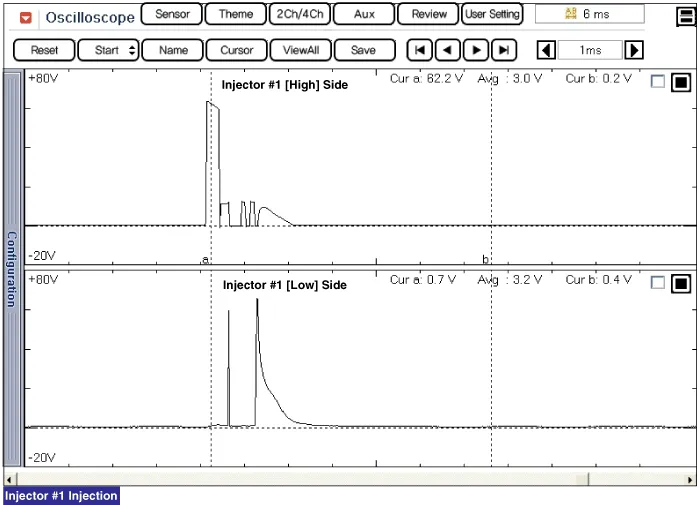

Signal Waveform

    Specification ItemSpecificationCoil Resistance (Ω)0.98 ~ 1.14 [20°C(68°F)]

    Circuit Diagram
