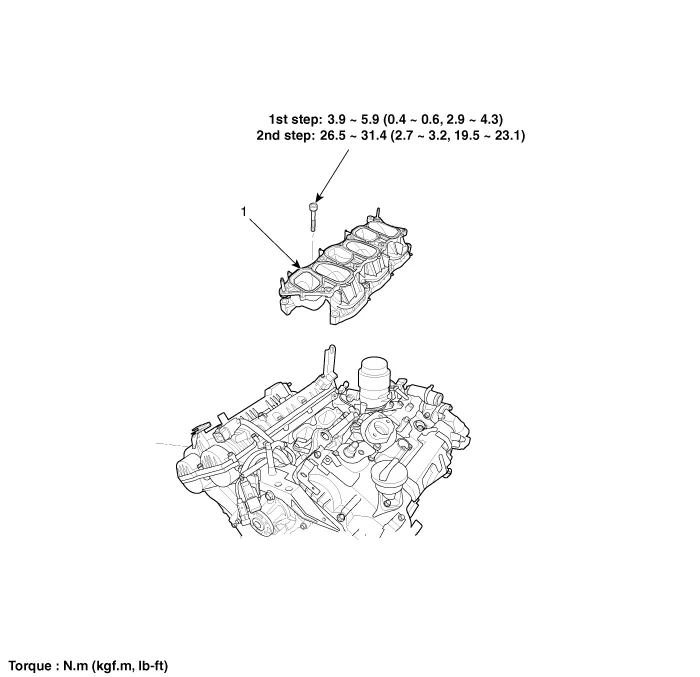

Components

1. Intake manifold

    Removal and Installation     To avoid damage, unplug the wiring connectors carefully while holding the connector portion.     Mark all wiring and hoses to avoid misconnection.

    Removal and Installation 1. Remove the surge tank. (Refer to Intake And Exhaust System - "Surge Tank") 2. Remove the low pressure fule line. (Refer to Fuel System - "Fuel Line") 3.
