Kia Cadenza YG: Engine Control System / Knock Sensor (KS) Schematic Diagrams

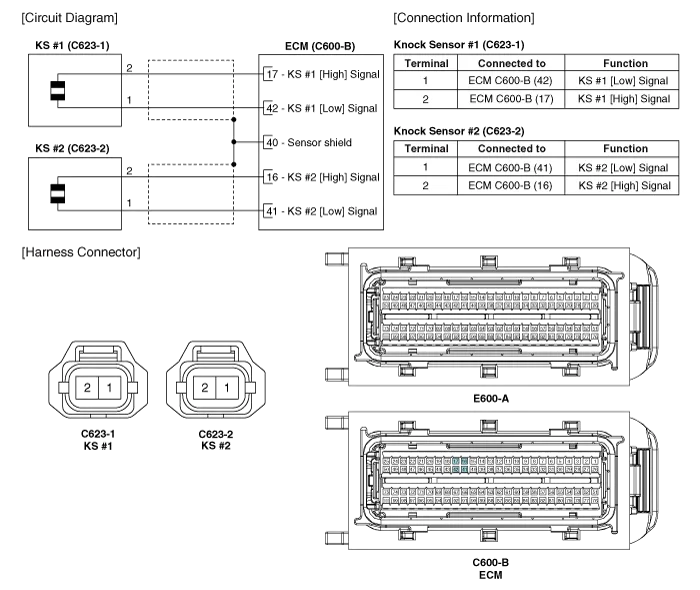

| Circuit Diagram |
Specification ItemSpecificationCapacitance (pF)950 ~ 1,350Resistance (MΩ)4.87
Removal [Knock Sensor #1 (Bank 1)] 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Disconnect the knock sensor connector (A).
