Kia Cadenza YG: Seat & Power Seat / Rear Seat Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Body (Interior and Exterior) / Seat & Power Seat / Rear Seat Components and Components Location

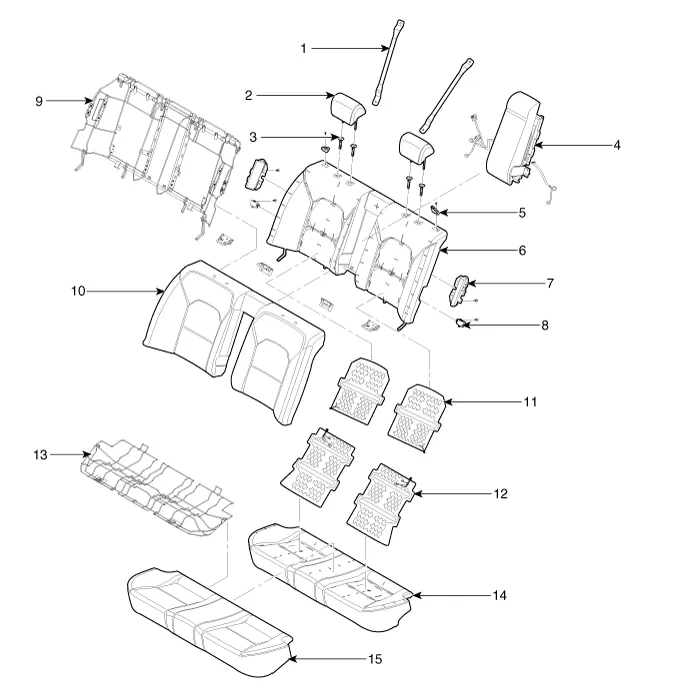

Components

1. Rear luggage bar
2. Headrest
3. Headrest guide
4. Rear back armrest
5. Web guide
6. Rear seat back pad
7. Sab support bracket
8. Rear back heater unit assembly
9. Rear seat back frame assembly
10. Rear seat back cover
11. Rear seat back heater assembly
12. Rear seat cushion heater
13. Rear seat cushion frame assembly
14. Rear seat cushion pad
15. Rear seat cushion cover

    Replaccement Seat Assembly Replacement 1. Remove the seat track mounting cover. 2. After loosening the seat assembly mounting bolts, remove the seat assembly (A).

    Replacement Seat Assembly Replacement 1. Remove the rear seat cushion (A). 2. Disconnect the rear seat cushion heater connectors (A). 3. After loosening the mounting bolts, then remove the rear seat back (A).
