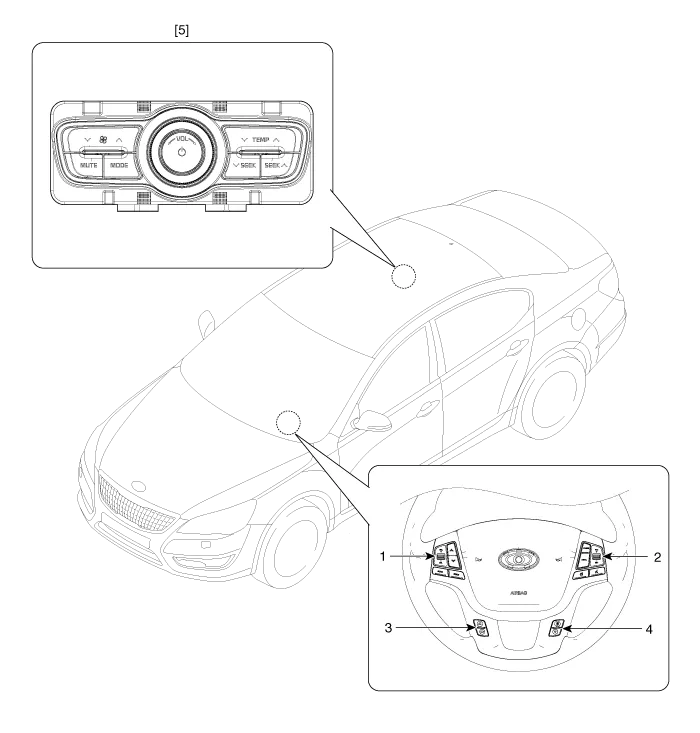

Components Location

1. Remote control switch (Audio) [LH]
2. Remote control switch (Cruise) [RH]
3. Bluetooth hands fress switch
4. Trip switch
5. Rear seat remote control switch

    Removal 1. Remove the rear roof trim. (Refer to Body - "Roof Trim") 2. Disconnect the connector (A) and cable (B) from the roof antenna. 3.

    Circuit Diagram
