Kia Cadenza YG: AVN System / Steering Wheel Remote Controller (SWRC) Schematic Diagrams

Kia Cadenza YG 2016-2021 Service Manual / Body Electrical System / AVN System / Steering Wheel Remote Controller (SWRC) Schematic Diagrams

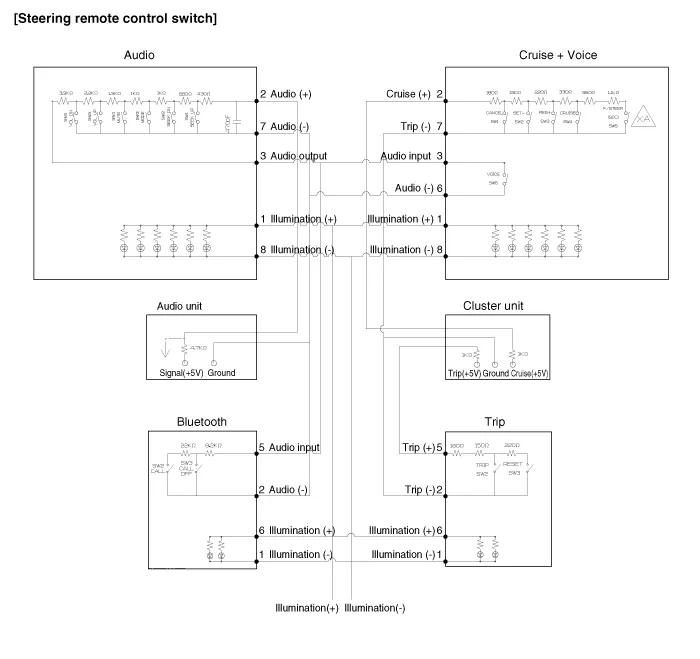

Circuit Diagram

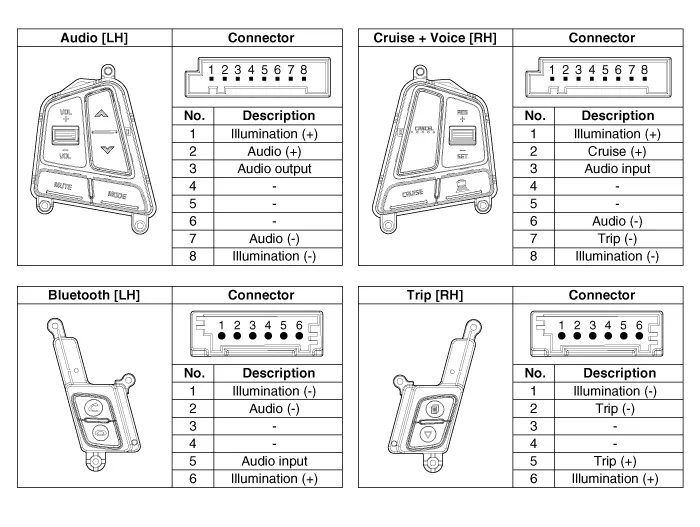

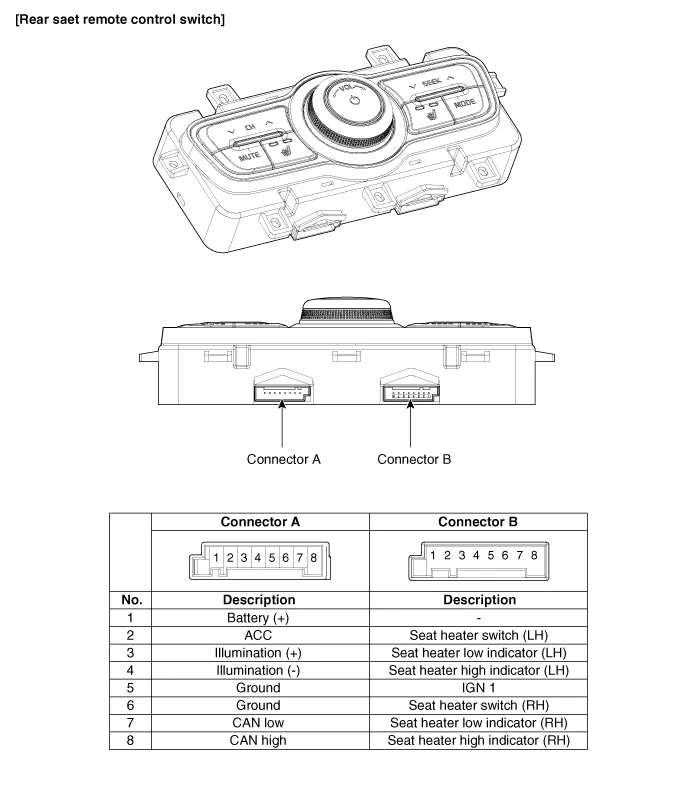

    Components Location 1. Remote control switch (Audio) [LH]2. Remote control switch (Cruise) [RH]3. Bluetooth hands fress switch4. Trip switch5. Rear seat remote control switch

    Inspection [Steering Remote Control Switch] 1. Check the audio remote control switch for resistance between terminals in each switch position. [Audio (LH)] SwitchConnectorterminalResistance(±5%)Seek up2-7430 ΩSeek down2-71.
