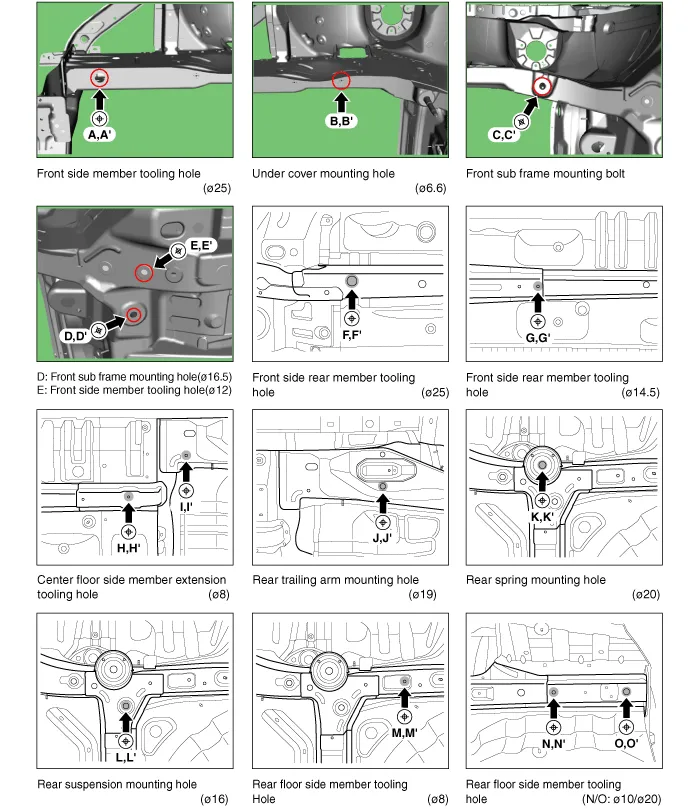

Kia Cadenza YG: Body Dimensions / Under Body Body Repair

Other information:

Kia Cadenza YG 2016-2021 Service Manual: Height Sensor Repair procedures

Removal Height Sensor 1. Disconnect the negative (-) battery terminal. 2. Remove the height sensor linkage (A) installed on the front axle and rear axle. [Front] [Rear] Installation Height Sensor 1. Install the height sensor assembly after connecting the connector.

Kia Cadenza YG 2016-2021 Service Manual: Pantoscopic Camera Repair procedures

Removal Front Pantoscopic Camera 1. Disconnect the negative (-) battery terminal. 2. Remove the front bumper cover. (Refer to Body - "Front Bumper Cover") 3. Remove the pantocscpic camera (B) after loosening the mounting screws and connector (A).
