Kia Cadenza: Lane Following Assist (LFA) / LFA operation
.jpg)

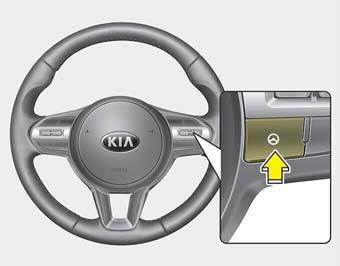

With the ENGINE START/STOP button
is
in the ON or START position, the
Lane Following Assist can be activated
by pressing the button.
Lane Following Assist is designed to
center the vehicle in the chosen lane
by using a front mounted camera on
top of the windshield.
It can only become active in combination
with Smart Crui ...
When the system is activated, the
indicator () on the cluster will
illuminate.
While LFA is activated, if press the
button again, the system is
released and indicator () light will
go off ...
