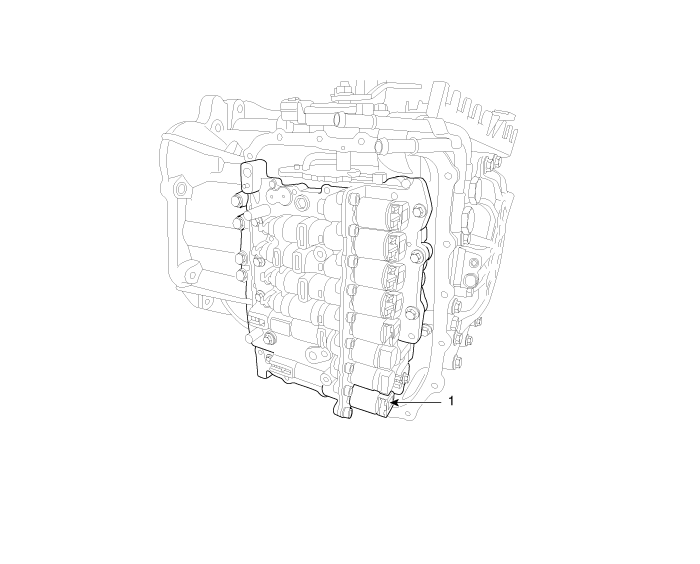

1. Line pressure control solenoid valve (LINE_VFS)
Line Pressure Control Solenoid Vale Specifications
Specification Item SpecificationControl typeN/H (Normal High)Control pressure kpa (kgf/cm², psi)500.14 ~ 9.81 (5.1 ~ 0.1, 72.54 ~ 1.42)Current value (mA) 50 ~ 850Coil resistance(Ω)5.1 ± 0.3 ...

Line Pressure Control Solenoid Vale Description and Operation
Description • Line pressure control solenoid valve is a Variable Force Solenoid (VFS) type. • When TCM supplies variable current to solenoid valve, line pressure is controlled ...
