Kia Cadenza: Lubrication System / Oil Level Gauge & Pipe Components and Components Location

Kia Cadenza YG 2016-2024 Service Manual / Engine Mechanical System / Lubrication System / Oil Level Gauge & Pipe Components and Components Location

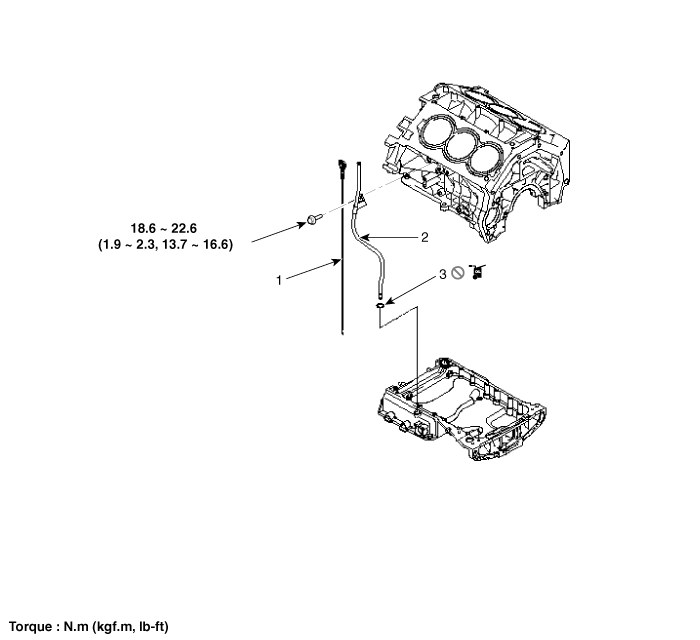

Components

1. Oil level gauge
2. Oil level gauge pipe
3. O-ring

Oil Pressure Switch Repair procedures
Removal and Installaion 1. Remove the intake manifold. (Refer to Intake And Exhaust System - "Intake Manifold") 2. Remove the delivery pipe and injector. (Refer to Engine Control / Fuel ...

Oil Level Gauge & Pipe Repair procedures
Removal and Installation 1. Remove the oil level gauge rod (A) and the oil level gauge (B). Tightening torque: 18.6 ~ 22.6N.m (1.9 ~ 2.3kgf.m, 13.7 ~ 16.6lb-ft)     ...
