Kia Cadenza: Lubrication System / Oil Pressure Switch Components and Components Location

Kia Cadenza YG 2016-2023 Service Manual / Engine Mechanical System / Lubrication System / Oil Pressure Switch Components and Components Location

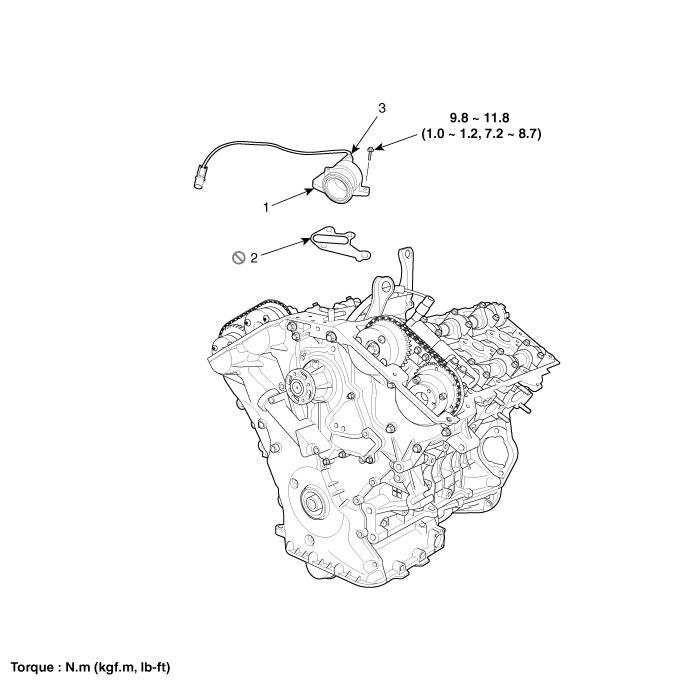

Components

1. Oil cover
2. Oil cover gasket
3. Oil pressure switch

Oil Pump Repair procedures
Removal and Installation 1. Remove the lower oil pan. (Refer to Lubrication System - "Oil Pan") 2. Remove the oil pump chain cover (A). Tightening torque : 9.8 ~ 11.8N.m (1.0 ~ 1.2kgf.m, ...

Oil Pressure Switch Repair procedures
Removal and Installaion 1. Remove the intake manifold. (Refer to Intake And Exhaust System - "Intake Manifold") 2. Remove the delivery pipe and injector. (Refer to Engine Control / Fuel ...
