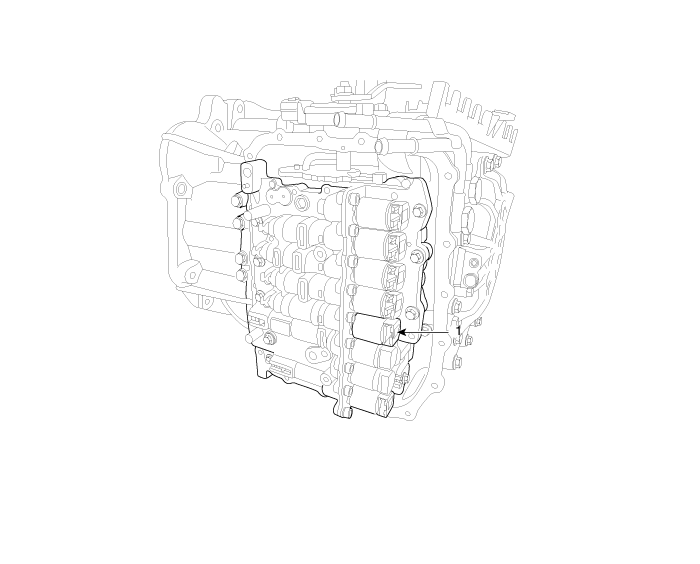

Component Location

1. Overdrive clutch control solenoid valve (OD/C_VFS)
Overdrive Clutch Control Solenoid Valve(OD/C_VFS) Specifications
Specification Item SpecificationControl typeN/H (Normal High)Control pressure kpa (kgf/cm², psi)"500.14 ~ 9.81 (5.1 ~ 0.1, 72.54 ~ 1.42)"Current value (mA)50 ~ 850Coil resistance(Ω)5.1 ± 0.3 ...

Overdrive Clutch Control Solenoid Valve(OD/C_VFS) Description and Operation
Description • Overdrive clutch control solenoid valve is a Variable Force Solenoid (VFS) type. • When TCM supplies variable current to solenoid valve, hydraulic pressure of und ...
