Kia Cadenza: Power Windows / Power Window Motor Schematic Diagrams

Kia Cadenza YG 2016-2025 Service Manual / Body Electrical System / Power Windows / Power Window Motor Schematic Diagrams

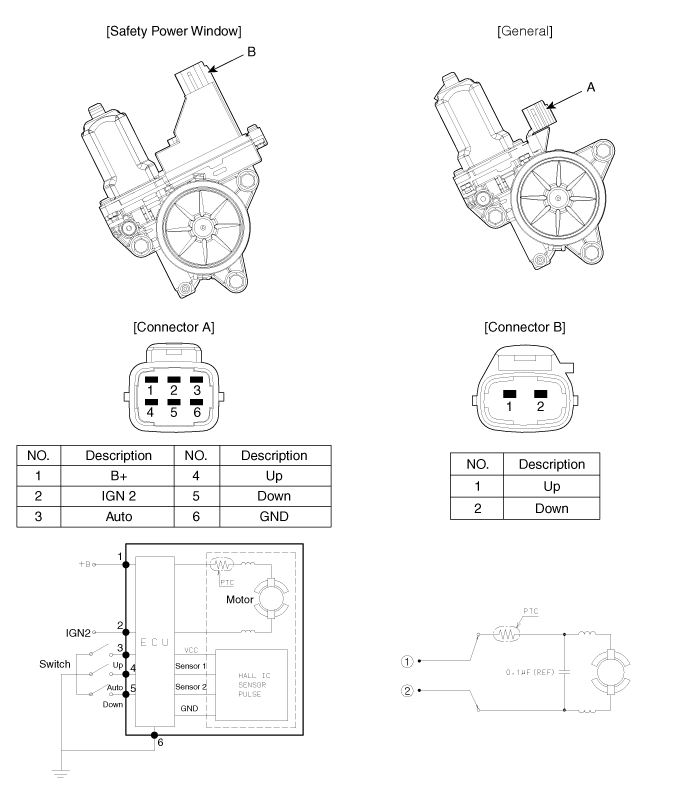

Circuit Diagram

Description and Operation
Function Of Safety Power Window When driver door power window auto-up switch is operated, safety function is activated. 1. Safety function condition When detect the force of 100N (using the 10N/ ...

Power Window Motor Repair procedures
Inspection Front Power Window Motor Inspection 1. Remove the front door trim panel. (Refer to Body - "Front Door") 2. Disconnect the connector from the motor. 3. Connect the terminal No. ...
