Kia Cadenza YG: Engine Control System / Heated Oxygen Sensor (HO2S) Troubleshooting

Kia Cadenza YG 2016-2021 Service Manual / Engine Control / Fuel System / Engine Control System / Heated Oxygen Sensor (HO2S) Troubleshooting

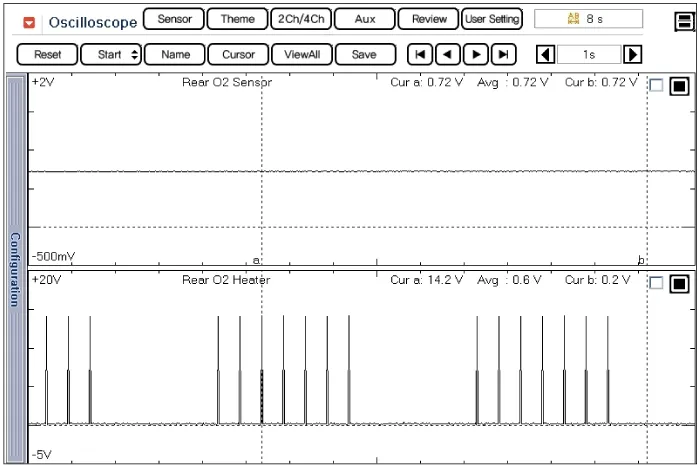

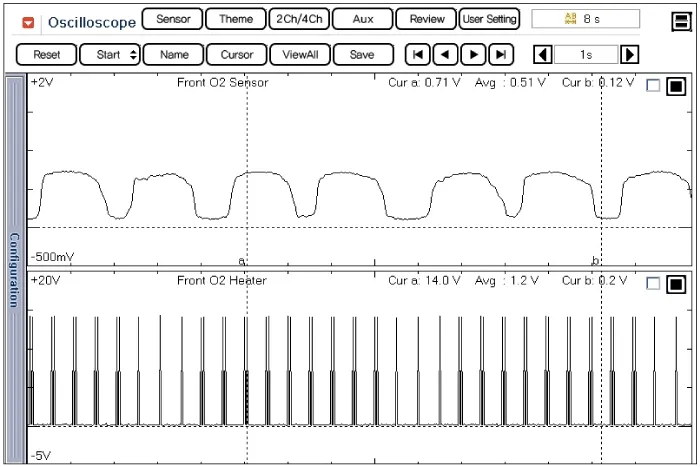

Wave Form

    Specification A/F Ratio (λ)Output Voltage(V)RICHMin. 0.8LEANMax. 0.1 ItemSpecificationHeater Resistance (Ω)3.3 ~ 4.1[20°C(68°F)]

    Circuit Diagram
