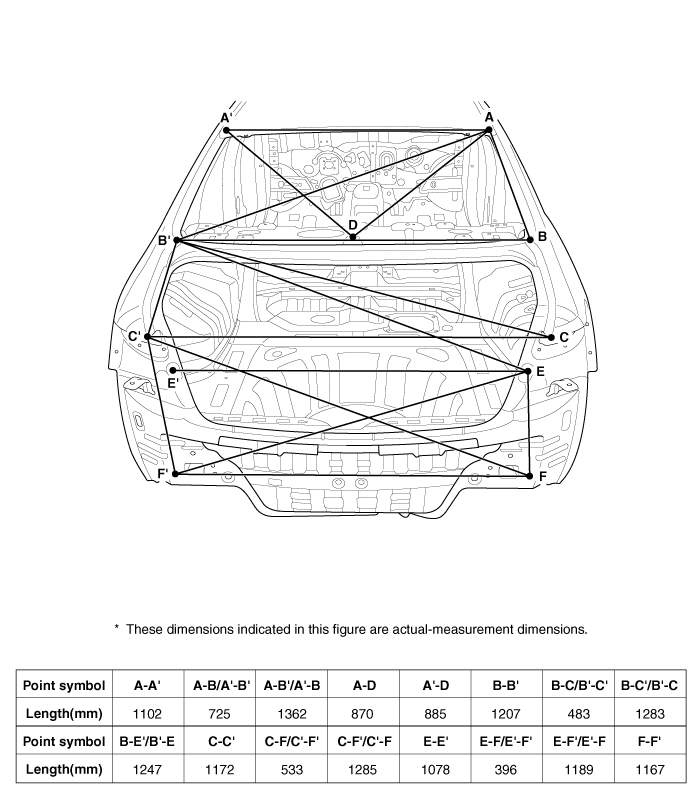

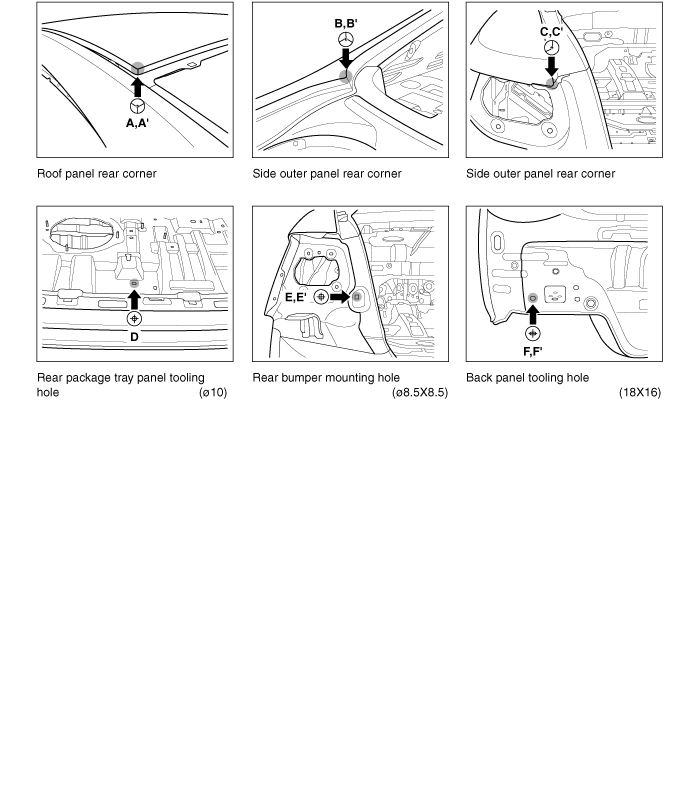

Kia Cadenza: Body Dimensions / Rear Body Body Repair

Kia Cadenza YG 2016-2024 Service Manual / Body (Interior and Exterior) / Body Dimensions / Rear Body Body Repair

Interior Body Repair
Interior A Interior B Interior C Interior D ...

Under Body Body Repair
Projected Dimensions Actual Measurement Dimensions ...
