Kia Cadenza: Body Dimensions / Interior Body Repair

Kia Cadenza YG 2016-2025 Service Manual / Body (Interior and Exterior) / Body Dimensions / Interior Body Repair

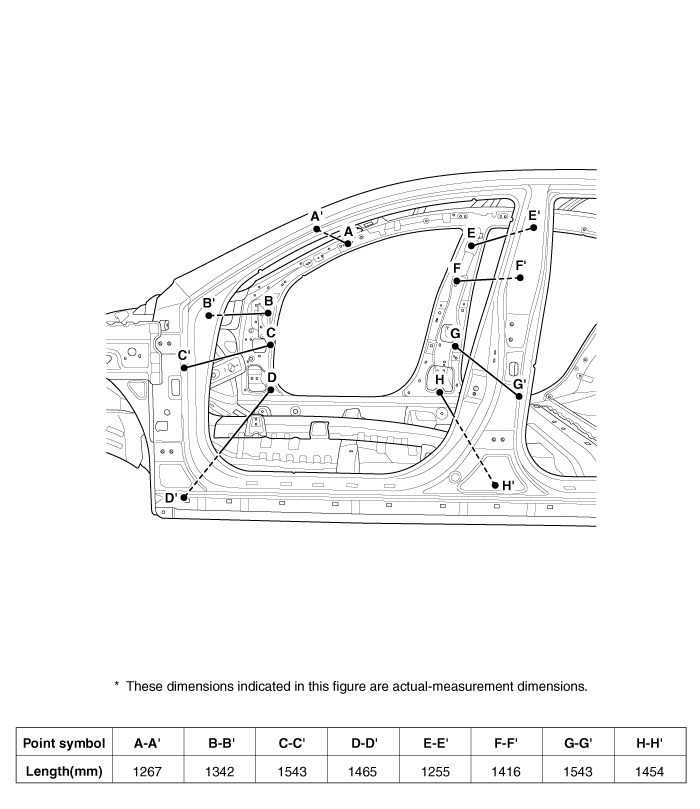

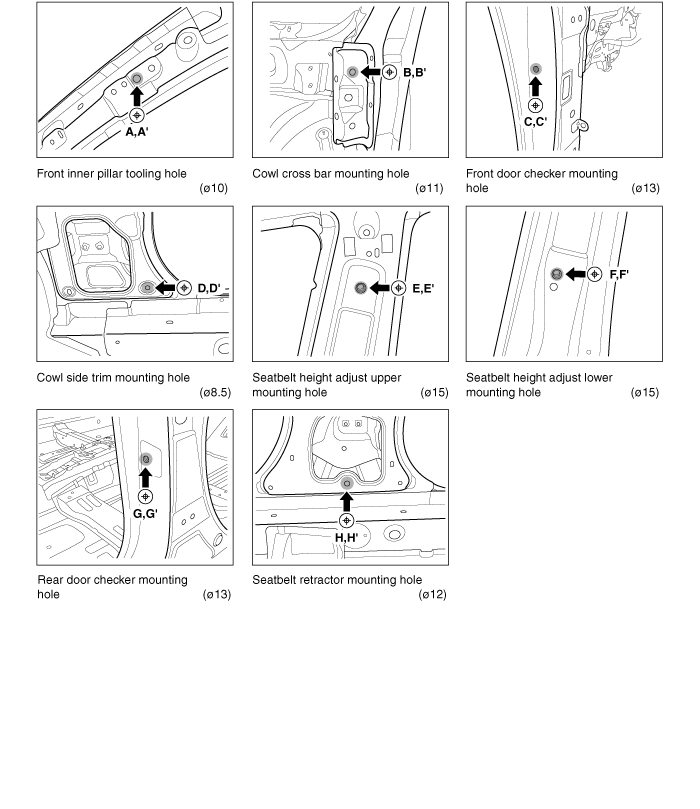

Interior A

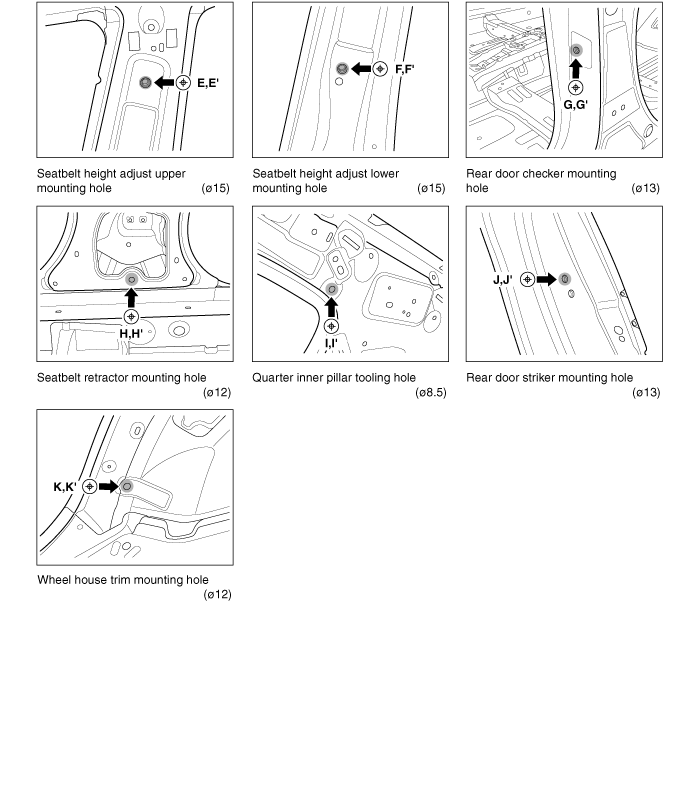

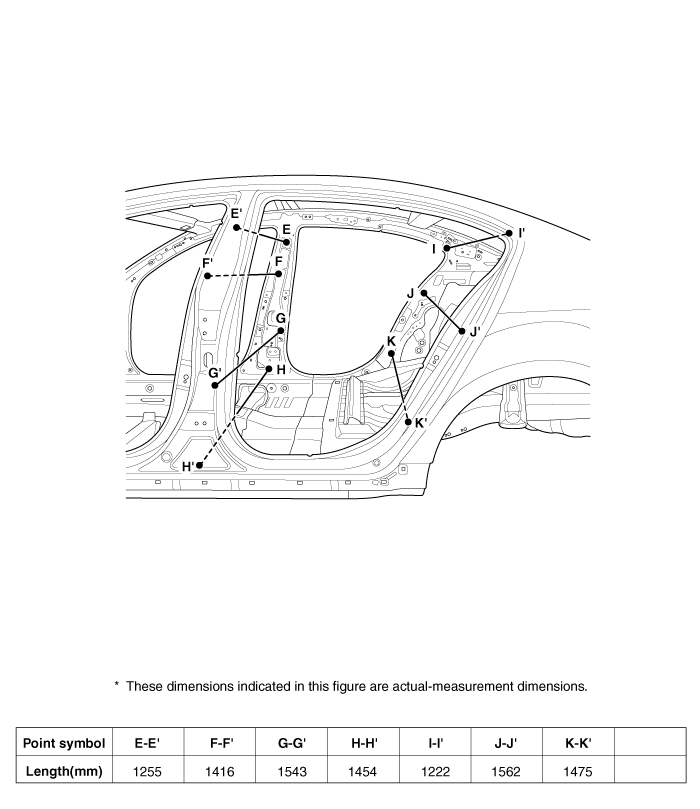

Interior B

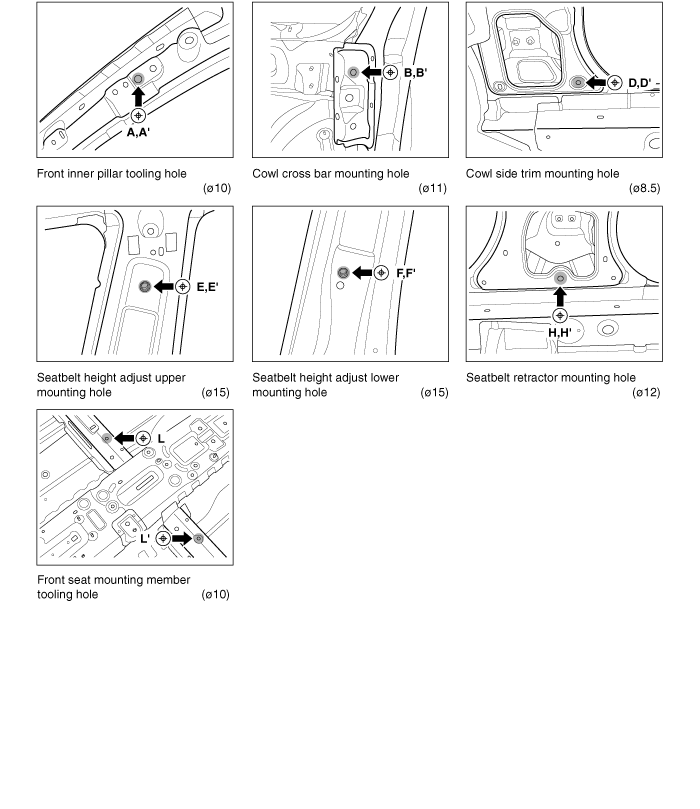

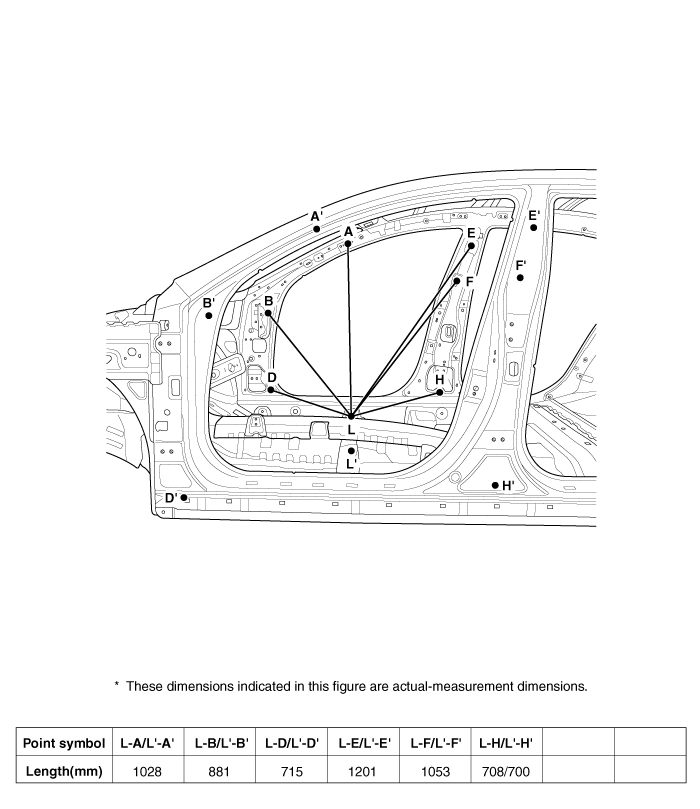

Interior C

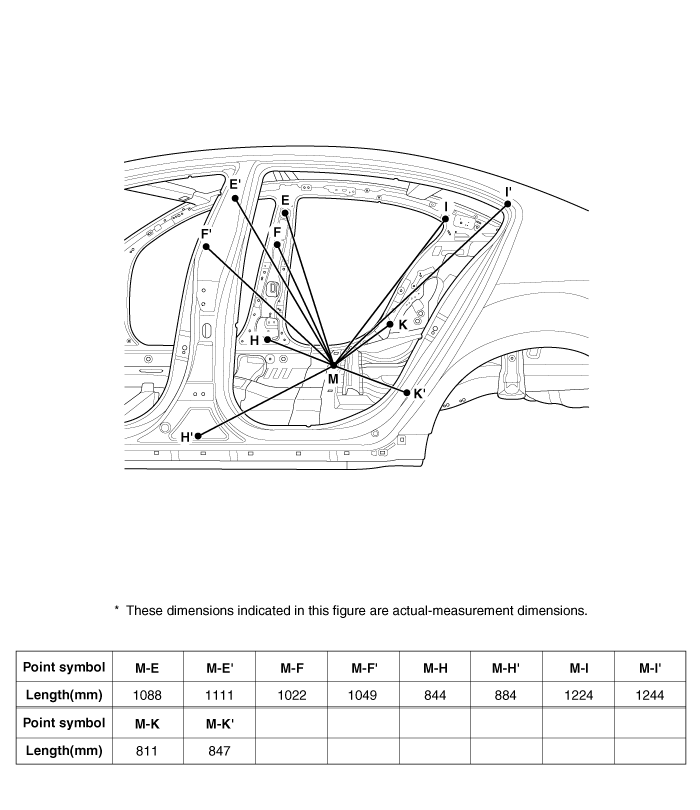

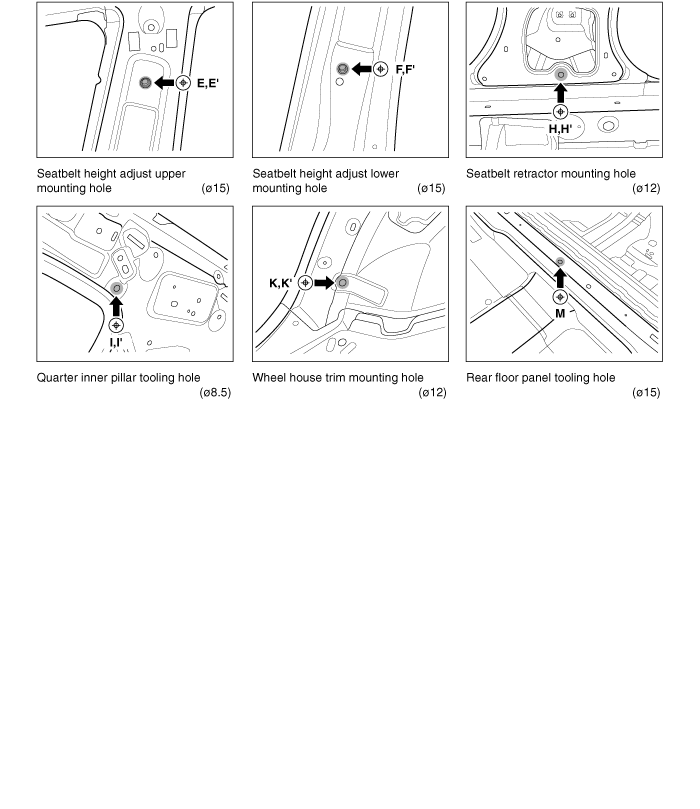

Interior D

Side Body Body Repair
Side Body A Side Body B Side Body C Side Body D ...

Rear Body Body Repair
...
