Kia Cadenza: Fuses And Relays / Relay Box (Engine Compartment) Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Engine Compartment) Components and Components Location

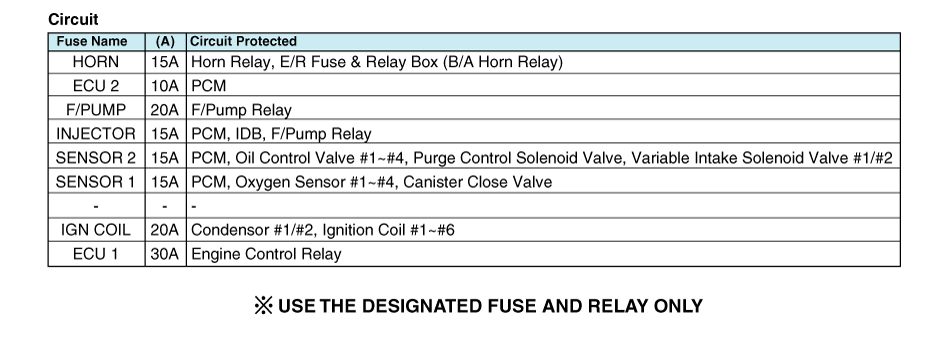

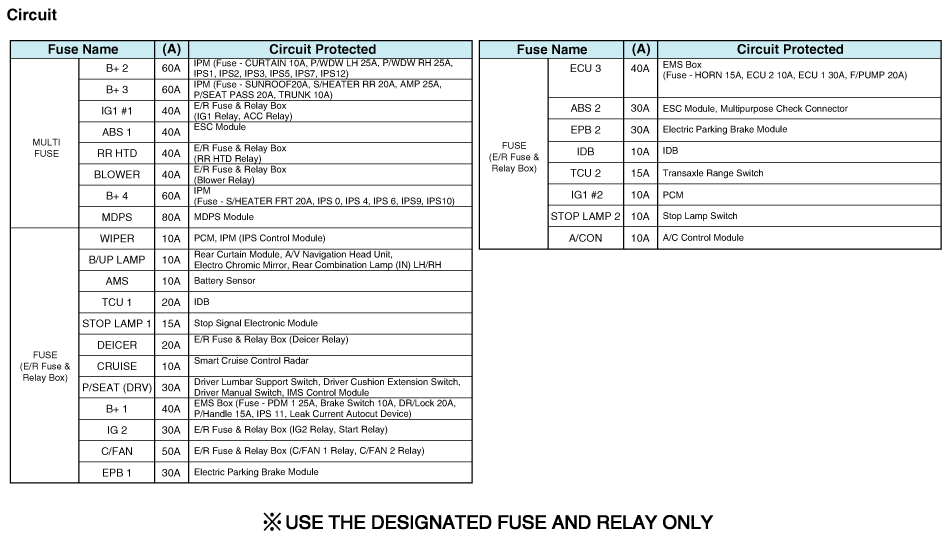

Components

Components and Components Location

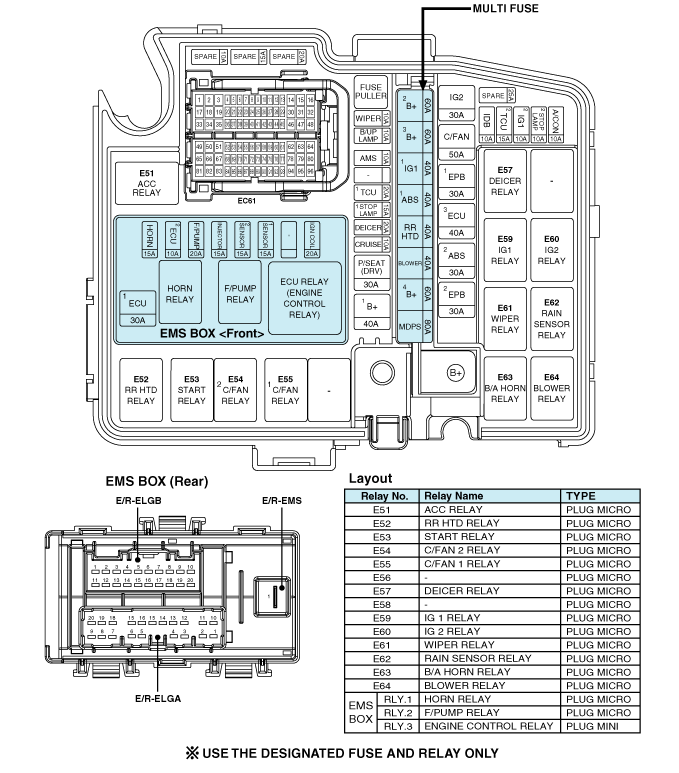

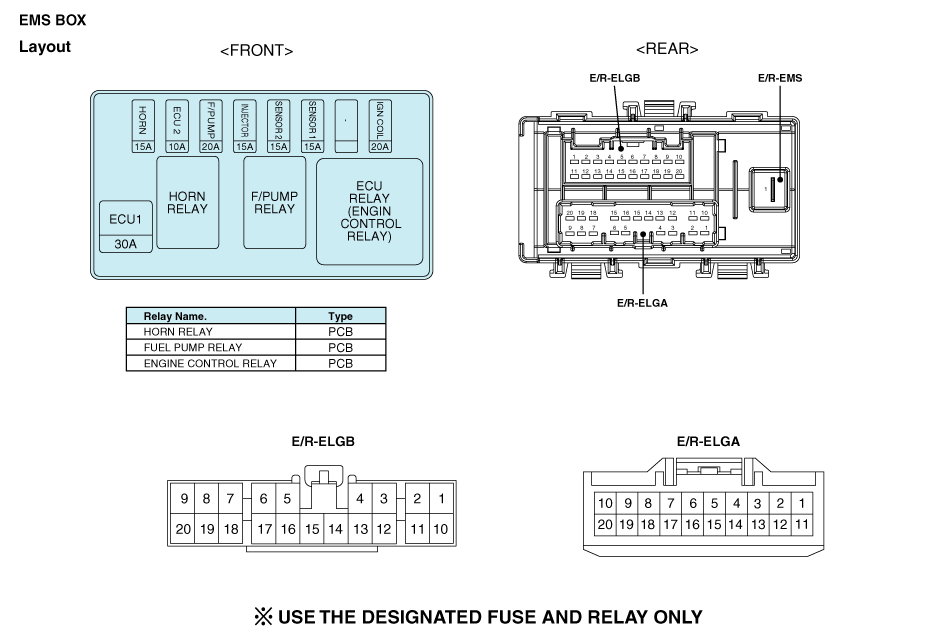

Component Location 1. Front deicer relay2. IGN2 relay3. Rain sensor relay4. Blower relay5. Burglar alarm horn relay6. Wiper relay7. IGN1 relay8. Cooling pan relay #19. Cooling pan relay #210. Sta ...

Relay Box (Engine Compartment) Repair procedures
Inspection Power Relay Test (Type A)     – Do not use pliers. – Pliers will damage the relays, which could cause the engine to stall or not start. ...
