| Special Service Tools |
| Tool Name / Number | Illustration | Description |

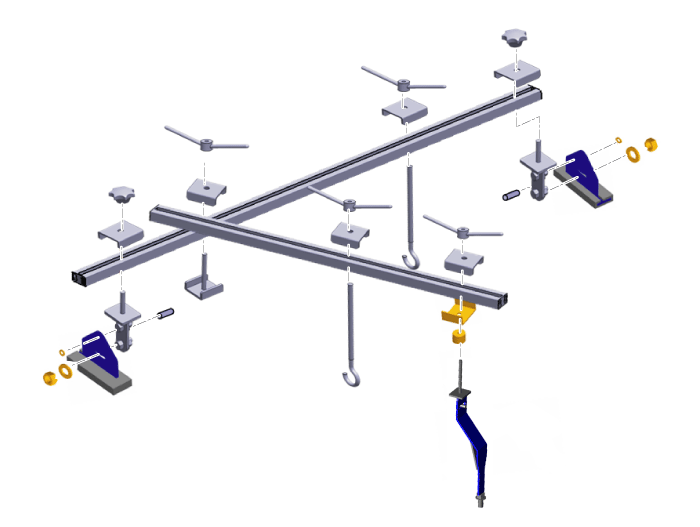

| Engine support fixture (Beam) 09200-3N000 |
| Used for holding engine assembly when removing / installing transaxle. Used with the supporter (09200-2S200) and adapter (09200-1P100). |
| Engine support fixture (Supporter) 09200-2S200 |
| Used for holding engine assembly when removing / installing transaxle. Used with the beam (09200-3N000) and adapter (09200-1P100). |
| Engine support fixture (Adaptor) 09200-1P100 |
| Used for holding engine assembly when removing / installing transaxle. Used with the beam (09200-3N000) and supporter (09200-2S200). |
| Oil seal installer 09453-3L240 |
| Installation of transaxle oil seal. Used with the handle (09231-H1100). |
| handle 09231-H1100 |
| Installation of transaxle oil seal. Used with the oil seal installer (09453-3L240). |
| Inhibitor switch guide pin 09480-A3800 |
| Used for fixing "N" range when installing inhibitor switch |
