Kia Cadenza: AVN System / Steering Wheel Remote Controller (SWRC) Schematic Diagrams

Kia Cadenza YG 2016-2024 Service Manual / Body Electrical System / AVN System / Steering Wheel Remote Controller (SWRC) Schematic Diagrams

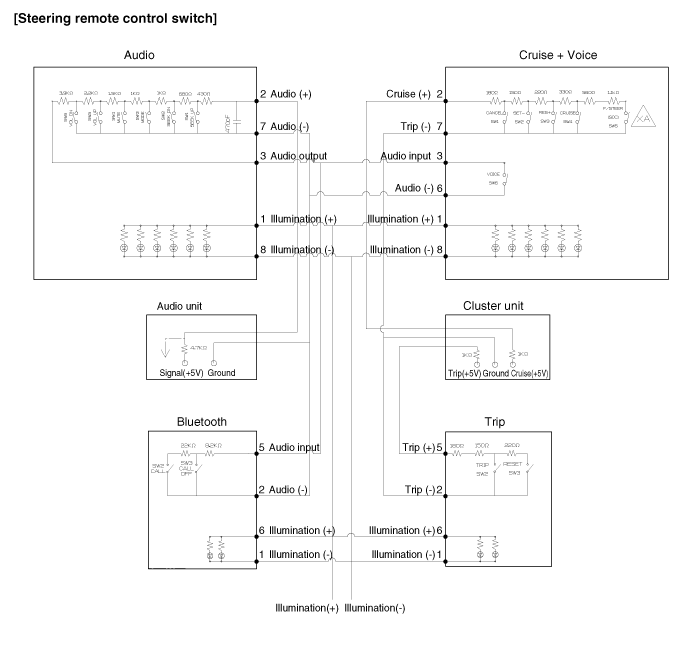

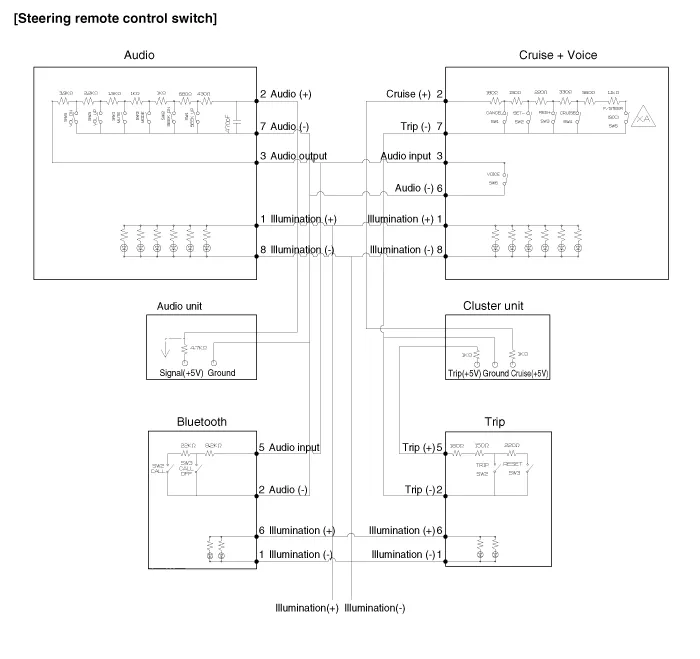

Circuit Diagram

Steering Wheel Remote Controller (SWRC) Components and Components Location

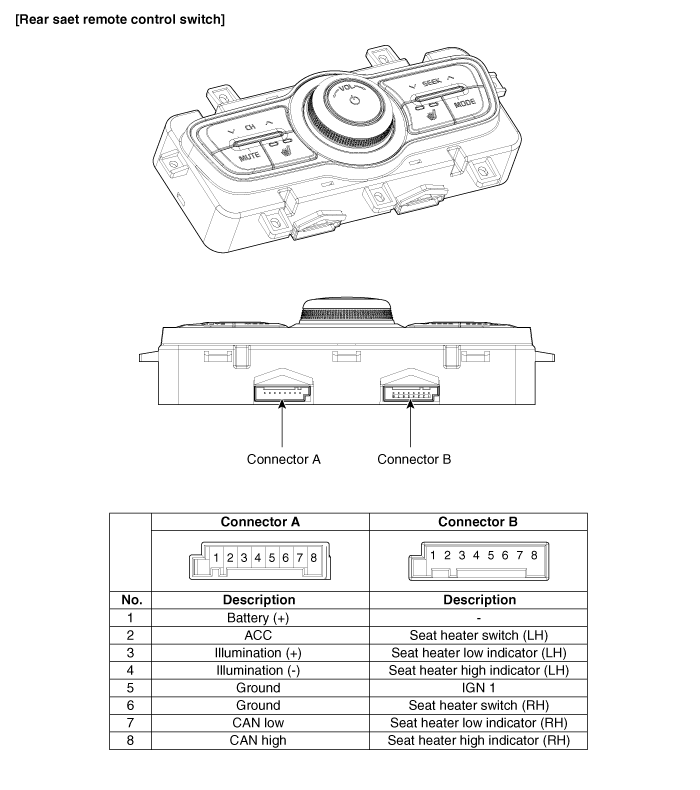

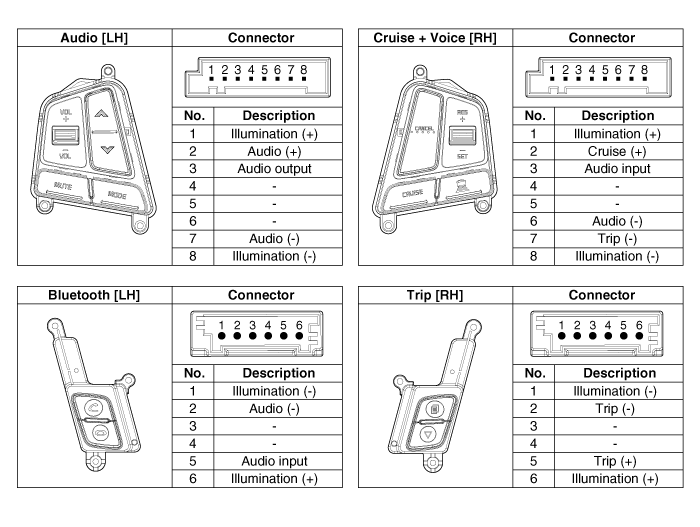

Components Location 1. Remote control switch (Audio) [LH]2. Remote control switch (Cruise) [RH]3. Bluetooth hands fress switch4. Trip switch5. Rear seat remote control switch ...

Steering Wheel Remote Controller (SWRC) Repair procedures
Inspection [Steering Remote Control Switch] 1. Check the audio remote control switch for resistance between terminals in each switch position. [Audio (LH)] SwitchConnectorterminalResistance( ...
