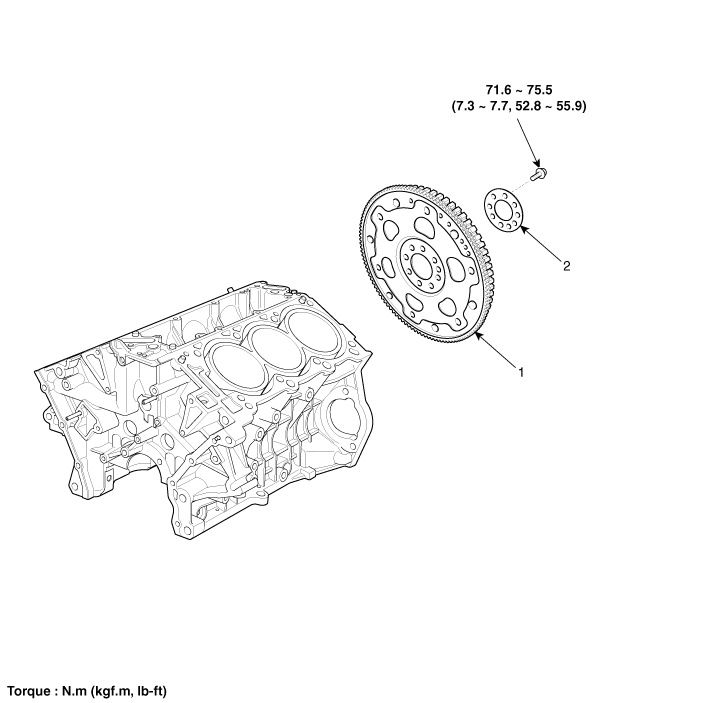

Components

1. Drive plate
2. Adapter plate

Water Jacket Seperator Repair procedures
Removal 1. Remove the LH/RH cylinder head assembly and gasket. (Refer to Cylinder Head Assembly - "Cylinder Head") 2. Remove the water jacket seperators (A). Installation 1. Install the ...

Drive Plate Repair procedures
Removal and Installation 1. Remove the automatic transaxle . (Refer to Automatic Transaxle System - "Automatic Transaxle") 2. Remove the adapter plate (A) and the drive plate (B). Tighte ...
