Kia Cadenza YG 2016-2024 Service Manual / Brake System / ESC(Electronic Stability Control) System / Front Wheel Speed Sensor Components and Components Location

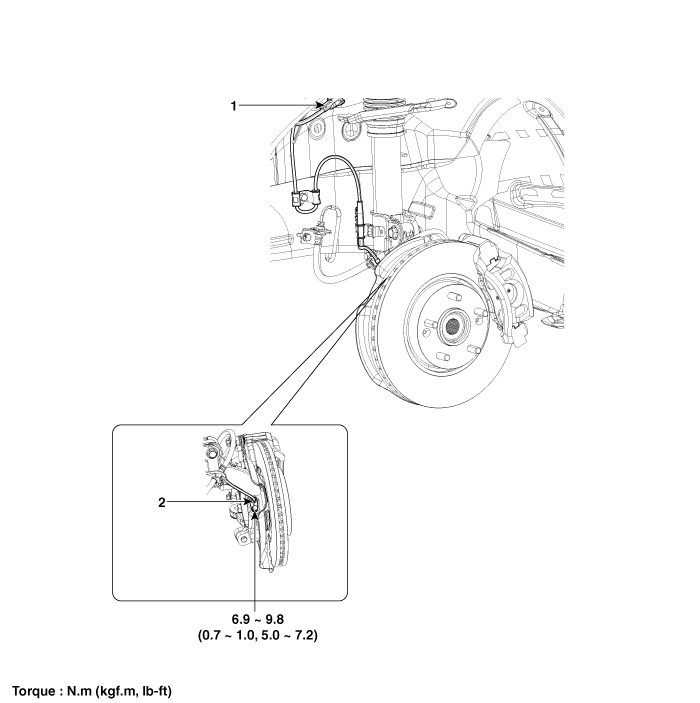

Components

1. Front wheel speed sensor
2. Front wheel speed sensor connector

ESC Control Module Repair procedures
Removal 1. Turn the ignition switch OFF. 2. Remove the air duct (B) and air cleaner assembly (A). 3. Remove the connector and then arrange the wiring harness (A). 4. Remove the brake f ...

Front Wheel Speed Sensor Repair procedures
Removal 1. Remove the front wheel and tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) 2. Remove the front wheel speed sensor mounting bolt (A). Tighten ...
